S32760 Super Duplex Stainless Steel Pipe–Specification, Composition, Mechanical Properties and Industrial Applications

S32760 super duplex stainless steel pipe is a high-alloy corrosion-resistant stainless steel designed for extremely aggressive environments such as offshore oil production systems, subsea pipelines, chemical processing plants, and marine engineering facilities. The material belongs to the super duplex stainless steel family and features a balanced ferritic–austenitic microstructure, typically consisting of approximately 50% ferrite and 50% austenite.

This dual-phase microstructure provides a unique combination of high strength and exceptional corrosion resistance. Compared with traditional austenitic stainless steels such as 316L, S32760 offers significantly higher yield strength and much stronger resistance to pitting corrosion, crevice corrosion, and chloride stress corrosion cracking.

Super duplex stainless steels like S32760 are often selected when standard duplex grades such as S31803 or S32205 cannot provide sufficient corrosion resistance in high chloride environments.

Major characteristics of S32760 super duplex stainless steel pipe include:

1 very high resistance to pitting and crevice corrosion
2 superior resistance to chloride stress corrosion cracking
3 extremely high mechanical strength
4 excellent resistance to seawater corrosion
5 long-term durability in harsh industrial environments

Because of these advantages, S32760 pipes are widely used in offshore engineering, marine structures, chemical processing equipment, and desalination plants.

S32760 super duplex stainless steel pipes are produced according to internationally recognized standards that specify chemical composition limits, mechanical properties, and manufacturing requirements.

Important standards include:

1 ASTM A790
2 ASTM A789
3 ASTM A928
4 EN 10216-5

Material equivalence:

These standards ensure that the material meets strict performance requirements for critical industrial applications.

The exceptional corrosion resistance of S32760 is primarily derived from its high chromium, molybdenum, and nitrogen content. These alloying elements improve resistance to localized corrosion and enhance mechanical strength.

Typical chemical composition range:

Functions of the alloying elements:

1 chromium improves corrosion resistance and passivation
2 molybdenum increases resistance to pitting corrosion
3 nitrogen enhances strength and stabilizes austenite
4 tungsten improves resistance to localized corrosion
5 copper improves resistance to certain acidic environments

S32760 super duplex stainless steel pipe offers very high strength compared with conventional stainless steels, allowing engineers to reduce wall thickness while maintaining structural integrity.

Typical mechanical properties include:

Engineering advantages include:

1 high pressure resistance for industrial pipelines
2 reduced material weight in large pipeline systems
3 improved structural reliability in offshore applications
4 increased safety margins in corrosive environments

Because of these properties, super duplex stainless steel pipes are commonly used in high-pressure subsea systems.

S32760 is designed for extremely aggressive environments where conventional stainless steels may fail. The high alloy content provides exceptional resistance to several types of corrosion.

Important corrosion resistance characteristics include:

1 excellent resistance to chloride pitting corrosion
2 superior resistance to crevice corrosion
3 outstanding resistance to stress corrosion cracking
4 strong resistance to seawater corrosion
5 good resistance to sulfide environments

The corrosion resistance of S32760 makes it particularly suitable for seawater handling systems and offshore oil production facilities.

he manufacturing of super duplex stainless steel pipes requires precise metallurgical control to maintain the correct ferrite-to-austenite phase balance.

Typical seamless pipe manufacturing process includes:

1 billet inspection and chemical verification
2 high temperature furnace heating
3 rotary piercing to form hollow tubes
4 hot rolling or extrusion
5 cold drawing to achieve precise dimensions
6 solution annealing heat treatment
7 pickling and passivation treatment
8 straightening and cutting
9 final inspection and quality testing

Womic Steel uses advanced stainless steel pipe production lines and strict process control to ensure stable microstructure and high corrosion resistance.

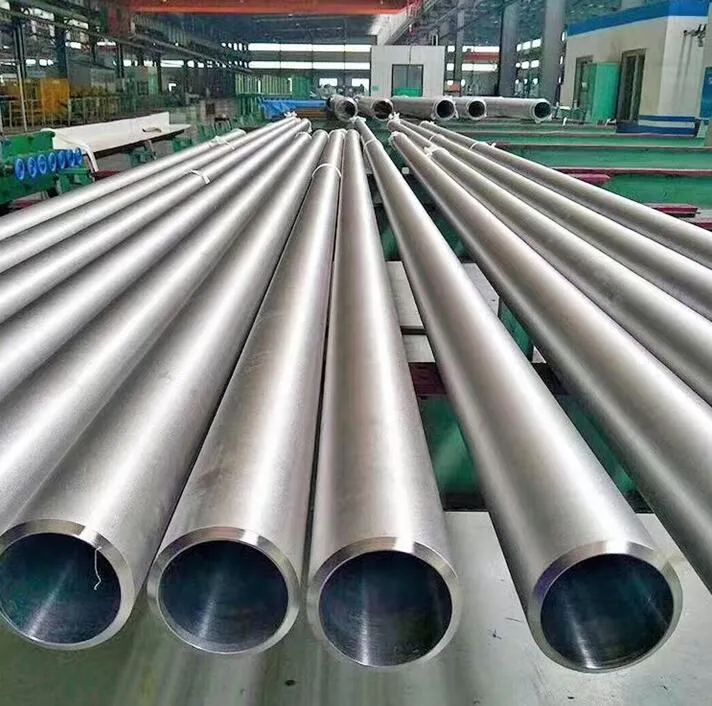

S32760 super duplex stainless steel pipes are available in a wide range of sizes for different industrial applications.

Typical production ranges include:

Seamless Pipe
OD: 6 mm – 610 mm

Welded Pipe
OD: 15 mm – 2500 mm

Common pipe schedules:

1 SCH 10
2 SCH 20
3 SCH 40
4 SCH 80
5 SCH 160

Available lengths:

1 random length
2 double random length
3 fixed project length

Custom sizes and project-specific dimensions can also be supplied.

Strict inspection procedures are required to guarantee the reliability of super duplex stainless steel pipes used in critical industrial systems.

Typical inspection methods include:

1 chemical composition analysis
2 tensile and mechanical property testing
3 hydrostatic pressure testing
4 ultrasonic flaw detection
5 ferrite content testing
6 PMI positive material identification
7 dimensional inspection

Third-party inspections from organizations such as SGS and TÜV are also available when required for international projects.

S32760 super duplex stainless steel pipes are widely used in industries that require extremely high corrosion resistance combined with high mechanical strength.

Typical application sectors include:

1 offshore oil and gas production pipelines
2 subsea flowline systems
3 marine engineering structures
4 seawater desalination plants
5 chemical processing equipment
6 offshore platform piping systems
7 high-pressure industrial pipelines

These applications require materials capable of maintaining long-term stability under high pressure, high salinity, and aggressive chemical conditions.

As a global supplier of stainless steel piping products, Womic Steel offers comprehensive manufacturing and supply capabilities.

Key advantages include:

1 Advanced stainless steel pipe production equipment
2 Strict quality inspection and testing systems
3 Wide range of pipe sizes and grades
4 Competitive pricing for international projects
5 Reliable delivery schedules and logistics support

With extensive experience supplying stainless steel pipes to international engineering projects, Womic Steel provides reliable piping solutions for customers worldwide.
