In modern industrial heat transfer equipment, efficient tube design plays a critical role in improving thermal performance and equipment reliability. Among various tube configurations used in heat exchangers,stainless steel U bend tubesare widely applied due to their compact structure, ability to accommodate thermal expansion, and excellent mechanical strength.
U bend tubes are an essential component inshell and tube heat exchangers, condensers, steam generators, and power plant cooling systems. These tubes allow fluids to circulate through the heat exchanger in a continuous flow path, reducing the number of tube sheet connections and improving equipment reliability.
Because these tubes operate under high temperature, pressure, and corrosive environments, selecting high qualitystainless steel U bend tubes for heat exchangersis crucial for long-term system performance.
For this reason, many engineering companies and equipment manufacturers work with experiencedU bend stainless steel tube supplierscapable of providing precision tube bending, heat treatment, and strict quality inspection.
Astainless steel U bend tubeis a tube that has been bent into a U-shaped configuration. The two straight legs of the tube are connected by a curved bend section, allowing fluid to enter one side of the tube and exit from the other side after completing the heat transfer cycle.
This design allows heat exchanger tubes to expand and contract under thermal stress without damaging the tube sheet connections. As a result,U bend tubes are commonly used in shell and tube heat exchangerswhere temperature variations can cause significant thermal expansion.
Compared with straight tubes,U bend heat exchanger tubesprovide several advantages:
reduced number of tube sheet joints
improved thermal expansion capability
simplified heat exchanger structure
enhanced operational reliability
These advantages make U bend tubes a preferred choice for many industrial heat transfer systems.
Stainless steel U bend tubesare widely used in various thermal equipment across multiple industries.
Typical applications include:
shell and tube heat exchangers
power plant condensers
steam generators
petrochemical heat exchangers
refinery cooling systems
marine heat exchangers
HVAC condenser units
In power generation plants,U bend tubes for heat exchangersare commonly installed in condensers where steam from turbines is cooled and converted back into water.
In petrochemical plants, U bend tubes are widely used in process heat exchangers that transfer heat between different process fluids.
Because these systems operate continuously under demanding conditions, high-qualitystainless steel heat exchanger U tubesare essential for maintaining stable operation and minimizing maintenance requirements.
Material selection is a critical factor in manufacturingstainless steel U bend tubes for heat exchangers. The chosen material must provide adequate corrosion resistance, mechanical strength, and heat transfer efficiency.
Several stainless steel grades are commonly used in heat exchanger U tubes.
Austenitic stainless steels are widely used due to their excellent corrosion resistance and good formability during bending operations.
Typical materials include:
ASTM A213 TP304 stainless steel U bend tube
ASTM A213 TP304L stainless steel U bend tube
ASTM A213 TP316 stainless steel U bend tube
ASTM A213 TP316L stainless steel U bend tube
Among these materials,TP316L stainless steel U bend tubesare particularly suitable for corrosive environments because molybdenum improves resistance to pitting corrosion.
These materials are commonly used in chemical processing plants and marine heat exchangers.
For boilers and steam generators operating at elevated temperatures, special stainless steel grades are required.
Typical materials include:
ASTM A213 TP321 stainless steel U bend tube
ASTM A213 TP347H stainless steel U bend tube
ASTM A213 TP310S stainless steel U bend tube
These materials offer excellent high temperature strength and resistance to oxidation in steam generation systems.
In aggressive corrosion environments such as seawater cooling systems,duplex stainless steel U bend tubesprovide superior performance.
Typical materials include:
UNS S31803 duplex stainless steel U bend tube
UNS S32205 duplex stainless steel U bend tube
Duplex stainless steels provide higher mechanical strength and improved resistance to chloride stress corrosion cracking compared with conventional austenitic stainless steels.
Producing high qualityheat exchanger U bend tubesrequires precise manufacturing processes to ensure dimensional accuracy and material performance.
The typical manufacturing process includes several steps.
First, straight stainless steel tubes are produced according to the required material standard such asASTM A213 or ASTM A269.
Second, the tubes undergo precisecold bending operationsusing specialized tube bending machines. During this process, strict control is required to prevent wall thinning, surface cracks, or deformation.
After bending, the tubes are typically subjected tosolution annealing heat treatmentto restore the original corrosion resistance and mechanical properties of the stainless steel.
Following heat treatment, the tubes undergopickling and passivationto remove oxide scale and improve surface cleanliness.
This multi-step manufacturing process ensures that the finalstainless steel U bend tubes for heat exchangersmeet strict performance requirements.
Moststainless steel heat exchanger U tubesare manufactured according to internationally recognized standards.
Common standards include:
ASTM A213 seamless stainless steel boiler tubes
ASTM A269 stainless steel tubing
ASTM A249 welded heat exchanger tubes
EN 10216-5 seamless stainless steel tubes
These standards specify requirements for chemical composition, mechanical properties, dimensional tolerances, and inspection procedures.
Compliance with these standards ensures thatU bend stainless steel tubesmeet the performance requirements for industrial heat transfer equipment.

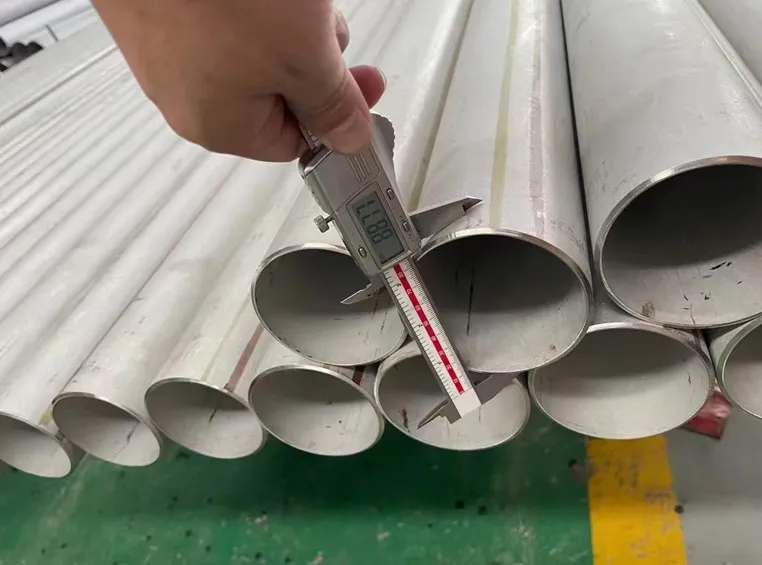

To guarantee quality and reliability,stainless steel U bend tubesundergo comprehensive inspection and testing before delivery.
Typical inspection items include:
chemical composition analysis
mechanical property testing
eddy current testing
ultrasonic testing
hydrostatic pressure testing
bend radius inspection
visual surface inspection
These inspections ensure that the tubes maintain structural integrity and meet strict heat exchanger performance requirements.
All inspection results are recorded in theMill Test Certificate, ensuring complete traceability of materials used in heat transfer equipment.
Proper packaging is essential to protectstainless steel U bend tubesduring transportation.
Because U bend tubes often have long lengths and curved structures, careful handling is required to prevent deformation.
Common packaging methods include:
steel frame bundles
wooden crates for small quantities
plastic end caps for tube protection
moisture resistant wrapping materials
Proper packaging helps maintain the surface condition and dimensional accuracy ofheat exchanger U bend tubesduring long-distance shipping.
Womic Steel is a professional manufacturer and global supplier ofstainless steel U bend tubes for heat exchangers and condensers.
Our production capabilities include:
seamless stainless steel U bend tubes
heat exchanger U tubes
custom fabricated tube bundles
precision bent tubes for condensers and boilers
Production range:
Outer Diameter: 12.7 mm – 76.2 mm
Wall Thickness: 0.7 mm – 6 mm
Maximum U bend length: up to 25 meters
Manufacturing standards include:
ASTM A213
ASTM A269
ASTM A249
EN 10216-5
Our inspection capabilities include:
eddy current testing
ultrasonic testing
hydrostatic testing
PMI material verification
With advanced manufacturing equipment, strict quality control procedures, and extensive international project experience, Womic Steel provides reliablestainless steel U bend tubes for heat exchangers, condensers, and industrial thermal systemsworldwide.
Customers are welcome to visit our factories, conduct production audits, and arrange third-party inspections before shipment.
