ASTM A358 stainless steel pipe is a specification covering electric fusion welded austenitic chromium-nickel stainless steel pipes intended for high-temperature service and corrosive environments. The standard is developed by ASTM International and is widely used in industrial piping systems where large-diameter stainless steel pipes are required.
Unlike seamless stainless steel pipes, ASTM A358 pipes are produced using electric fusion welding (EFW), a manufacturing process that allows the production of large-diameter stainless steel pipes with excellent structural integrity and corrosion resistance. This specification is commonly used for heat exchangers, petrochemical plants, power generation systems, chemical processing units, and offshore industrial facilities.
ASTM A358 stainless steel welded pipes are designed to handle demanding service conditions including high temperature, corrosive chemicals, and continuous industrial operation. These pipes are available in several grades including TP304, TP304L, TP316, TP316L, TP321, and TP347, each offering different performance characteristics depending on the application.
Because of their high strength, excellent weldability, and corrosion resistance, ASTM A358 stainless steel pipes are widely used in industrial piping systems, pressure pipelines, and heat transfer equipment.

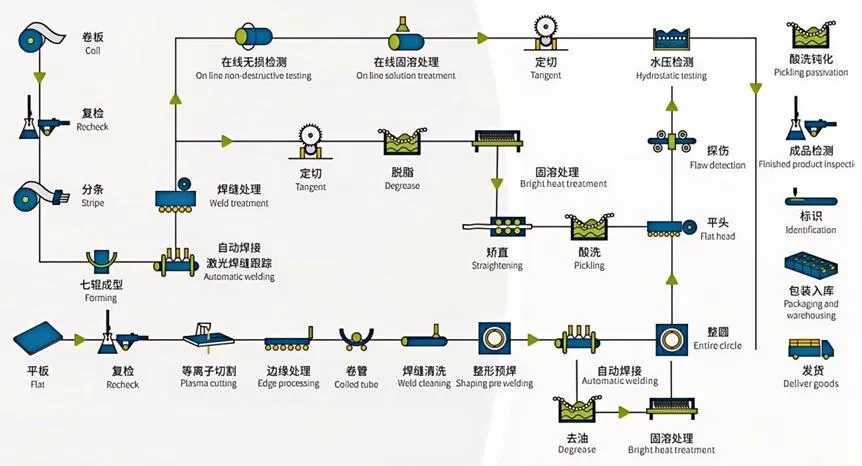

The production of ASTM A358 stainless steel pipes involves advanced electric fusion welding technology designed to ensure consistent quality and structural reliability.
The process begins with high-quality stainless steel plates or coils that meet strict chemical composition requirements. These plates are formed into cylindrical shapes using precision forming machines.
The longitudinal seam of the pipe is then welded using electric fusion welding. In this process, the edges of the stainless steel plate are melted and fused together using high-energy electric arc welding techniques. This creates a strong weld joint that is comparable in strength to the base metal.
Depending on the class requirements specified in ASTM A358, weld seams may undergo additional heat treatment and inspection procedures. Some classes require both the weld seam and the entire pipe to undergo solution annealing to restore corrosion resistance.
After welding and heat treatment, pipes undergo surface finishing processes including pickling and passivation to remove oxide scale and improve corrosion resistance.
This manufacturing process enables the production of large-diameter stainless steel pipes with excellent dimensional accuracy and high structural reliability.
ASTM A358 stainless steel pipes are categorized into different classes based on welding procedures, heat treatment conditions, and inspection requirements. These classes determine the quality control measures applied during production.
For example, certain classes require radiographic examination of the weld seam to verify structural integrity and detect potential welding defects. Radiographic inspection ensures that weld joints are free from internal cracks, porosity, or lack of fusion.
Some pipe classes require both the plate material and the weld seam to undergo solution heat treatment. This process improves corrosion resistance by dissolving chromium carbides that may form during welding.
Hydrostatic testing may also be performed to confirm the pipe’s ability to withstand internal pressure without leakage.
These classification systems ensure that ASTM A358 stainless steel pipes can be selected according to the specific requirements of industrial projects.
One of the most important advantages of ASTM A358 stainless steel pipe is its excellent corrosion resistance. Austenitic stainless steels contain significant amounts of chromium and nickel, which create a passive oxide layer on the pipe surface.
This passive layer protects the stainless steel pipe from oxidation and corrosion in many aggressive environments. As a result, ASTM A358 pipes are widely used in industries where exposure to chemicals, moisture, and high temperatures is common.
For applications involving chloride-containing environments, molybdenum-bearing grades such as TP316 and TP316L are often preferred. These grades provide improved resistance to pitting corrosion and crevice corrosion.
In high-temperature service environments such as power plants or heat exchangers, stabilized grades like TP321 and TP347 may be used because they resist carbide precipitation during prolonged exposure to elevated temperatures.
These corrosion-resistant properties make ASTM A358 stainless steel welded pipes suitable for demanding industrial operations.
ASTM A358 stainless steel pipes are typically used in medium to large diameter industrial pipelines. Because they are produced using plate forming and welding technology, these pipes can be manufactured in sizes that are not always practical for seamless pipe production.
Common outer diameters for ASTM A358 welded pipes range from approximately 8 inches to more than 100 inches depending on manufacturing capabilities. Wall thickness can vary depending on the pressure requirements of the piping system.
The availability of large diameters makes ASTM A358 stainless steel pipes particularly useful for major infrastructure projects such as desalination plants, chemical plants, and energy facilities.
Dimensional accuracy is carefully controlled during production to ensure compatibility with flanges, fittings, and other piping components used in industrial systems.
ASTM A358 electric fusion welded stainless steel pipes are used in a wide range of industrial sectors due to their durability, corrosion resistance, and high-temperature performance.
Petrochemical plants frequently use ASTM A358 pipes to transport aggressive chemical fluids under elevated temperature conditions. Stainless steel’s resistance to chemical corrosion ensures long service life in these systems.
Power generation facilities use large-diameter stainless steel welded pipes for steam pipelines, heat exchanger systems, and cooling water circuits.
Oil and gas processing plants also rely on stainless steel pipes for handling corrosive fluids and high-pressure process streams.
Marine engineering projects use corrosion-resistant stainless steel pipes in offshore structures, desalination plants, and seawater treatment systems.
Because of their high structural strength and corrosion resistance, ASTM A358 pipes are also used in large-scale industrial infrastructure projects worldwide.
As a professional stainless steel pipe manufacturer, Womic Steel provides high-quality ASTM A358 stainless steel welded pipes for international industrial projects.

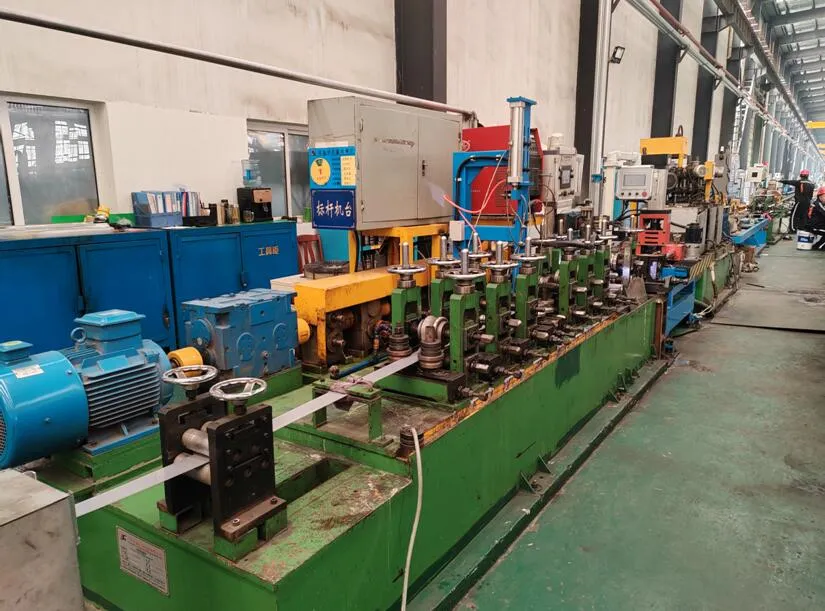

Womic Steel operates modern stainless steel pipe production facilities equipped with advanced plate forming equipment, precision welding systems, and heat treatment furnaces. These facilities enable the production of electric fusion welded stainless steel pipes with excellent dimensional accuracy and mechanical performance.
The company manufactures stainless steel pipes in multiple grades including TP304, TP304L, TP316, TP316L, TP321, and TP347 to meet the requirements of various industrial applications.
Strict quality control procedures are implemented throughout the manufacturing process. Each pipe undergoes chemical composition analysis, mechanical property testing, dimensional inspection, and non-destructive examination to ensure compliance with ASTM standards.
Womic Steel supplies stainless steel pipes to global customers in industries such as oil and gas, chemical processing, power generation, marine engineering, and infrastructure development.
With extensive manufacturing experience and reliable supply capabilities, Womic Steel continues to provide stainless steel pipe solutions for demanding industrial environments.
