ASTM A312 stainless steel pipe is one of the most widely used standards for seamless and welded austenitic stainless steel pipes in industrial piping systems. The specification is issued by ASTM International and covers pipes intended for high-temperature service, corrosive environments, and general industrial applications.
Because of its excellent corrosion resistance, strong mechanical properties, and reliable performance at elevated temperatures, ASTM A312 stainless steel pipe has become a fundamental material in industries such as petrochemical processing, power generation, marine engineering, pharmaceutical manufacturing, and food processing systems.
The standard includes a wide range of stainless steel grades, allowing engineers to select the appropriate material based on operating conditions such as temperature, pressure, and corrosion environment. Pipes manufactured according to ASTM A312 can be supplied as seamless stainless steel pipes or welded stainless steel pipes, depending on project requirements.
Due to its versatility and reliability, ASTM A312 stainless steel pipe is widely used in pipelines that transport steam, water, chemicals, oil products, and various industrial fluids.
The ASTM A312 specification covers seamless, welded, and heavily cold worked austenitic stainless steel pipes intended for high-temperature and general corrosion service.
The standard defines technical requirements for several key aspects of stainless steel pipe manufacturing, including:
Chemical composition limits for each grade
Mechanical property requirements
Heat treatment procedures
Dimensional tolerances and wall thickness requirements
Surface quality and finish conditions
Inspection and testing procedures
ASTM A312 pipes are commonly supplied in solution annealed condition to ensure optimal corrosion resistance and mechanical performance.
Because this specification includes multiple stainless steel grades, ASTM A312 pipes can be used in a wide variety of industrial applications ranging from general piping systems to highly corrosive chemical environments.
The ASTM A312 standard includes numerous austenitic stainless steel grades, each designed to meet specific industrial requirements.
Below are some of the most commonly used grades in ASTM A312 stainless steel pipes:
TP304
TP304L
TP316
TP316L
TP321
TP347
TP310S
TP309S
TP904L
TP316Ti
Each of these stainless steel grades offers different combinations of corrosion resistance, temperature resistance, and mechanical strength.
For example, TP304 stainless steel pipe is widely used for general industrial piping systems, while TP316 stainless steel pipe offers improved corrosion resistance due to the addition of molybdenum. Stabilized grades such as TP321 and TP347 are commonly used in high-temperature applications where resistance to carbide precipitation is important.
The chemical composition of stainless steel determines its corrosion resistance and mechanical performance. The table below compares several commonly used ASTM A312 stainless steel pipe grades.
|
Grade |
Cr (%) |
Ni (%) |
Mo (%) |
C (%) |
Key Feature |
|
TP304 |
18–20 |
8–11 |
— |
≤0.08 |
General corrosion resistance |
|
TP304L |
18–20 |
8–12 |
— |
≤0.03 |
Improved weldability |
|
TP316 |
16–18 |
10–14 |
2–3 |
≤0.08 |
Better chloride resistance |
|
TP316L |
16–18 |
10–14 |
2–3 |
≤0.03 |
Low carbon corrosion resistance |
|
TP321 |
17–19 |
9–12 |
— |
≤0.08 |
Titanium stabilized |
|
TP347 |
17–19 |
9–13 |
— |
≤0.08 |
Niobium stabilized |
|
TP310S |
24–26 |
19–22 |
— |
≤0.08 |
High temperature resistance |
Chromium provides corrosion resistance by forming a passive oxide layer on the stainless steel surface.
Nickel improves ductility, toughness, and resistance to chemical attack.
Molybdenum significantly enhances resistance to pitting corrosion and chloride environments.
Titanium and niobium are used in stabilized stainless steel grades to prevent carbide precipitation during welding or prolonged exposure to high temperatures.
The mechanical performance of stainless steel pipes determines their ability to withstand pressure, temperature fluctuations, and mechanical stress.
Below is a comparison of typical mechanical properties for common ASTM A312 grades.
|
Grade |
Yield Strength (MPa) |
Tensile Strength (MPa) |
Elongation (%) |
|
TP304 |
≥205 |
≥515 |
≥35 |
|
TP304L |
≥170 |
≥485 |
≥35 |
|
TP316 |
≥205 |
≥515 |
≥35 |
|
TP316L |
≥170 |
≥485 |
≥35 |
|
TP321 |
≥205 |
≥515 |
≥35 |
|
TP347 |
≥205 |
≥515 |
≥35 |
Austenitic stainless steels generally offer excellent ductility and toughness. These properties allow pipes to absorb mechanical stress and deformation without cracking.
In addition, stainless steel maintains stable mechanical performance at both low and high temperatures, making ASTM A312 pipes suitable for a wide range of industrial environments.
The manufacturing process of ASTM A312 stainless steel pipes involves several advanced production steps to ensure consistent quality and dimensional precision.
Seamless stainless steel pipes are produced by piercing solid steel billets to form hollow tubes. These tubes are then hot rolled and cold finished to achieve the required diameter and wall thickness.
Welded stainless steel pipes are manufactured by forming stainless steel strip or plate into cylindrical shapes and welding the longitudinal seam using high-precision welding processes such as TIG welding or submerged arc welding.
After forming, pipes undergo solution annealing heat treatment to restore corrosion resistance and remove internal stresses created during manufacturing.
Surface treatment processes such as pickling and passivation are applied to remove oxide scale and ensure a clean, corrosion-resistant surface.
To ensure reliability and safety, ASTM A312 stainless steel pipes must undergo strict inspection and testing procedures during production.
Typical inspection methods include:
Chemical composition analysis
Mechanical property testing
Hydrostatic pressure testing
Non-destructive testing such as ultrasonic testing
Dimensional inspection
Surface quality examination
These tests verify that the pipes meet ASTM standard requirements and are suitable for industrial applications.
Quality inspection ensures that stainless steel pipes can perform safely under demanding service conditions.
ASTM A312 stainless steel pipes are used in numerous industries due to their excellent corrosion resistance and durability.
Petrochemical plants use stainless steel pipes for transporting corrosive chemicals and high-temperature process fluids.
Power generation facilities use ASTM A312 pipes in steam pipelines, boiler systems, and heat exchangers.
Food and beverage industries rely on stainless steel pipes because of their hygienic properties and resistance to contamination.
Marine engineering projects use corrosion-resistant stainless steel pipes in seawater handling systems.
Pharmaceutical manufacturing facilities also use stainless steel piping systems to maintain strict cleanliness standards.
These diverse applications demonstrate the importance of ASTM A312 stainless steel pipes in modern industrial infrastructure.

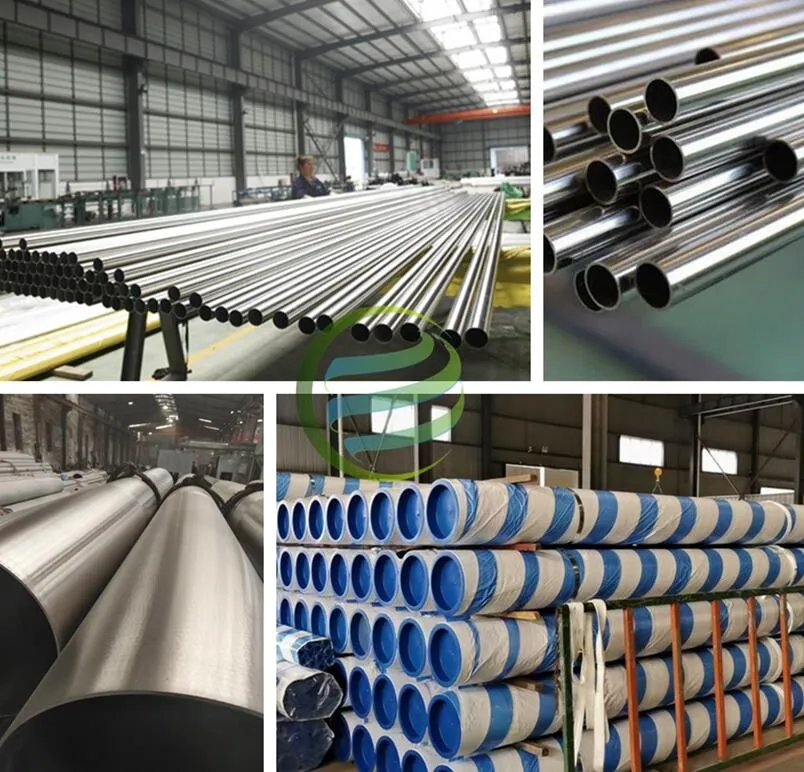

Womic Steel is a professional manufacturer specializing in high-quality stainless steel pipes for global industrial markets.

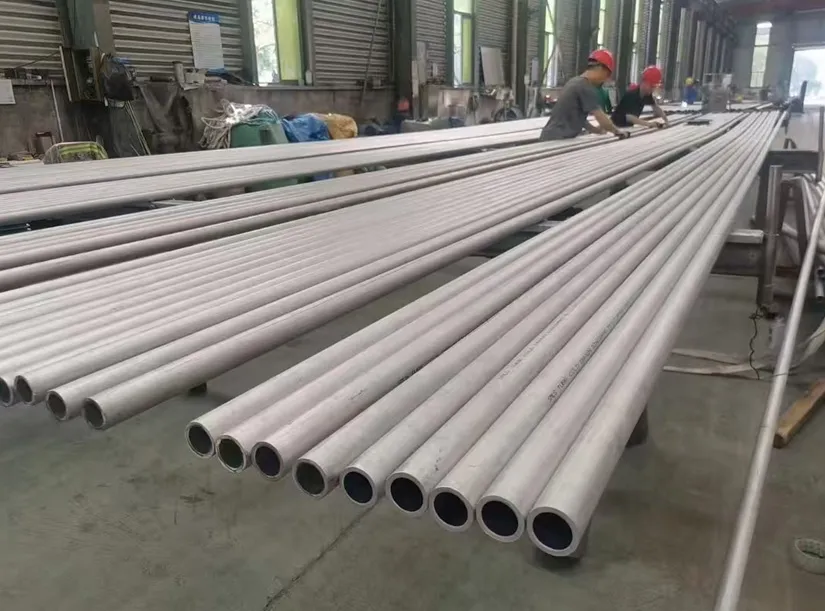

The company produces ASTM A312 stainless steel pipes using advanced manufacturing equipment and strict quality control systems. Production facilities include modern pipe forming machines, cold drawing lines, and high-temperature heat treatment furnaces.
Womic Steel manufactures stainless steel pipes in a wide range of materials including TP304, TP304L, TP316, TP316L, TP321, TP347, TP310S, and other specialized grades to meet various industrial requirements.
The company’s production range covers multiple pipe sizes and wall thicknesses, supporting applications in oil and gas, chemical processing, marine engineering, infrastructure construction, and industrial manufacturing.
Each stainless steel pipe undergoes comprehensive inspection procedures including chemical composition verification, mechanical testing, dimensional inspection, and non-destructive examination.
Through strong production capacity, advanced manufacturing technology, and reliable supply capability, Womic Steel provides stainless steel pipe solutions for demanding industrial projects worldwide.
