304 Stainless Steel Pipe – Specifications, Chemical Composition, Manufacturing Process and Applications

304 stainless steel pipe is one of the most widely used austenitic stainless steel piping materials in industrial applications. Due to its excellent corrosion resistance, good mechanical strength, high temperature resistance, and outstanding fabrication performance, 304 stainless steel pipes are extensively used in chemical processing, petroleum refining, power generation, food processing, pharmaceutical production, and structural engineering projects worldwide.

The standard grade 304 stainless steel pipe is commonly manufactured according to internationally recognized specifications such as ASTM A312, ASTM A213, and ASTM A269. These standards define strict requirements for chemical composition, mechanical properties, heat treatment conditions, testing procedures, and dimensional tolerances.

As a professional stainless steel pipe manufacturer, Womic Steel supplies high-quality 304 stainless steel seamless pipes and welded pipes that comply with international standards and project specifications.

304 stainless steel pipes are produced according to multiple international specifications to meet different industrial requirements.

Common manufacturing standards include:

1 ASTM A312
2 ASTM A213
3 ASTM A269
4 EN 10216-5
5 EN 10217-7
6 JIS G3459

These standards define strict requirements for pipe dimensions, chemical composition, heat treatment processes, inspection procedures, and pressure performance.

304 stainless steel pipe corresponds to several equivalent grades across international standards.

These materials share similar chemical composition and mechanical properties, making them interchangeable in many engineering applications.

The chemical composition of 304 stainless steel provides excellent corrosion resistance and oxidation resistance.

The high chromium and nickel content creates a stable passive oxide layer on the metal surface, which protects the pipe from corrosion in many environments.

304 stainless steel pipes exhibit reliable mechanical strength and good ductility, making them suitable for both pressure piping and structural applications.

The excellent elongation allows the pipe to withstand deformation during forming, bending, and welding operations.

304 stainless steel pipe provides excellent resistance to a wide range of corrosive environments. The chromium-rich passive film on the surface prevents oxidation and corrosion in many industrial applications.

Key corrosion resistance features include:

1 Excellent resistance to atmospheric corrosion
2 Good resistance to organic chemicals and mild acids
3 High resistance to oxidation at elevated temperatures
4 Good performance in fresh water and industrial water systems

However, 304 stainless steel may experience pitting corrosion in environments containing high concentrations of chlorides. For severe chloride environments, grades such as 316L or duplex stainless steels are often recommended.

Seamless 304 stainless steel pipes are produced using advanced hot forming and cold finishing technologies to achieve superior mechanical properties and dimensional accuracy.

The manufacturing process typically includes the following steps:

1 Raw material inspection and billet preparation
2 Heating of stainless steel billets in rotary furnaces
3 Piercing process to create hollow tubes
4 Hot rolling or extrusion to achieve pipe dimensions
5 Cold drawing or cold rolling for dimensional precision
6 Solution annealing heat treatment
7 Straightening and cutting to required lengths
8 Non-destructive inspection and dimensional inspection

Womic Steel operates advanced seamless pipe production lines with strict process control to ensure high dimensional accuracy and excellent metallurgical quality.

Welded stainless steel pipes are produced by forming stainless steel strips or plates and welding the seam using advanced welding technologies.

Typical manufacturing steps include:

1 Stainless steel coil preparation
2 Roll forming into cylindrical shape
3 Automatic TIG welding
4 Weld seam heat treatment
5 Online weld seam inspection
6 Pickling and passivation
7 Sizing and straightening
8 Final inspection and testing

Modern welded pipe technology can achieve weld quality comparable to seamless pipes for many industrial applications.

304 stainless steel pipes are available in a wide range of diameters and wall thicknesses.

Typical production range at Womic Steel includes:

Standard pipe lengths include:

6 meters
12 meters
or customized lengths according to project requirements.

304 stainless steel pipes are commonly produced according to ASME pipe schedules.

Typical schedules include:

SCH 5
SCH 10
SCH 20
SCH 40
SCH 80
SCH 160
XXS

Wall thickness selection depends on pressure rating, temperature conditions, and design codes used in the piping system.

Different surface finishes can be supplied according to application requirements.

Common surface conditions include:

1 Pickled and passivated surface
2 Bright annealed surface
3 Mechanical polished surface
4 Sand blasted surface

Surface finishing improves corrosion resistance, appearance, and cleanliness for industrial applications.

To guarantee product quality and compliance with international standards, stainless steel pipes must undergo strict testing and inspection procedures.

Typical inspection items include:

1 Chemical composition analysis
2 Mechanical property testing
3 Hydrostatic pressure test
4 Eddy current test
5 Ultrasonic testing
6 PMI (Positive Material Identification)
7 Intergranular corrosion test
8 Dimensional inspection

Womic Steel follows comprehensive quality control procedures and provides full inspection documentation including mill test certificates.

Due to its excellent corrosion resistance and fabrication performance, 304 stainless steel pipe is widely used across many industries.

Typical applications include:

1 Oil and gas processing systems
2 Petrochemical plants
3 Food processing equipment
4 Pharmaceutical production facilities
5 Heat exchanger systems
6 Water treatment plants
7 Structural and architectural applications
8 Power generation facilities

These industries require reliable piping materials capable of operating under demanding environmental and mechanical conditions.

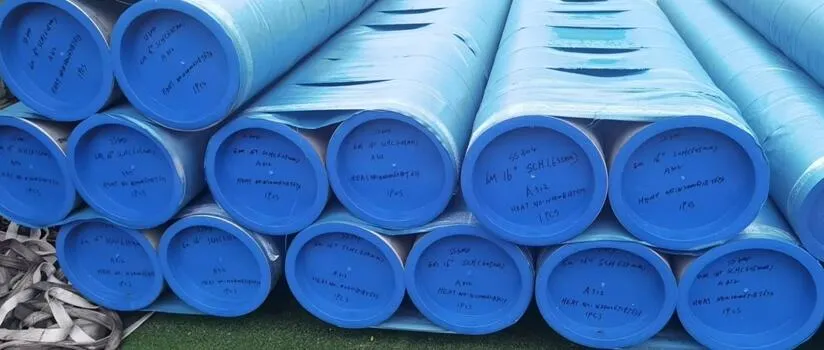

Proper packing is essential to ensure that stainless steel pipes remain in perfect condition during transportation and storage.

Typical export packing methods include:

1 Wooden cases packing
2 Steel strip bundle packing
3 Plastic end caps protection
4 Waterproof wrapping materials

Womic Steel provides professional export packing solutions suitable for long-distance ocean transportation.

As a global supplier of stainless steel piping products, Womic Steel offers comprehensive manufacturing and supply capabilities.

Key advantages include:

1 Advanced stainless steel pipe production equipment
2 Strict quality inspection and testing systems
3 Wide range of pipe sizes and grades
4 Competitive pricing for international projects
5 Reliable delivery schedules and logistics support

With extensive experience supplying stainless steel pipes to international engineering projects, Womic Steel provides reliable piping solutions for customers worldwide.
