316L Stainless Steel Pipe–Specifications, Chemical Composition, Mechanical Properties and Industrial Applications

316L stainless steel pipe is a low-carbon molybdenum-alloyed austenitic stainless steel pipe widely used in industries that require high corrosion resistance and excellent weldability. Compared with standard 316 stainless steel, 316L contains lower carbon content, which effectively prevents carbide precipitation during welding and improves resistance to intergranular corrosion.

Because of its superior corrosion resistance and reliable mechanical performance, 316L stainless steel pipes are commonly used in chemical processing systems, offshore engineering, pharmaceutical manufacturing, food processing plants, marine environments, and industrial fluid transportation pipelines.

316L stainless steel pipes are typically manufactured according to international specifications such as ASTM A312, ASTM A213 and ASTM A269.

As a professional stainless steel pipe manufacturer, Womic Steel supplies high-quality 316L stainless steel seamless pipes and welded pipes for global engineering projects.

316L stainless steel pipes are produced in accordance with various international standards to meet engineering requirements across different regions.

Common standards include:

1 ASTM A312
2 ASTM A213
3 ASTM A269
4 EN 10216-5
5 EN 10217-7
6 JIS G3459

These standards specify requirements for chemical composition, mechanical performance, dimensional tolerances, inspection procedures, and heat treatment conditions.

316L stainless steel corresponds to several equivalent grades in different international material standards.

These materials share similar metallurgical characteristics and corrosion resistance, making them suitable substitutes under different engineering standards.

The low carbon content combined with molybdenum alloying significantly enhances corrosion resistance.

The molybdenum element improves resistance to chloride attack and pitting corrosion, making the material particularly suitable for marine environments.

316L stainless steel pipes provide excellent mechanical strength and ductility.

These mechanical properties allow the pipe to withstand pressure, thermal stress, and mechanical loads during operation.

316L stainless steel pipe offers excellent corrosion resistance in aggressive environments.

Key advantages include:

1 Superior resistance to chloride pitting corrosion
2 Excellent resistance to crevice corrosion
3 Improved resistance to intergranular corrosion after welding
4 Strong performance in marine environments
5 Good resistance to sulfuric acid and phosphoric acid

Due to these properties, 316L stainless steel pipe is widely used in offshore engineering and chemical processing plants.

Seamless 316L stainless steel pipes are produced using advanced metallurgical and forming technologies.

Typical manufacturing steps include:

1 stainless steel billet inspection
2 billet heating in rotary furnaces
3 piercing to create hollow tube shells
4 hot rolling or extrusion
5 cold drawing or cold rolling
6 solution annealing heat treatment
7 straightening and cutting
8 non-destructive testing and inspection

Womic Steel operates modern seamless pipe production lines with strict process control to ensure consistent product quality.

Welded 316L stainless steel pipes are produced by forming stainless steel strip or plate and welding the seam using advanced welding technologies.

Typical production process includes:

1 stainless steel coil preparation
2 roll forming into cylindrical pipe shape
3 automatic TIG welding
4 weld seam heat treatment
5 pickling and passivation
6 pipe sizing and straightening
7 dimensional inspection and testing

These processes ensure high weld integrity and reliable corrosion resistance.

316L stainless steel pipes are available in a wide range of sizes.

Typical production capability of Womic Steel includes:

Standard pipe lengths include:

6 meters
12 meters
or customized lengths according to project requirements.

316L stainless steel pipes are typically produced according to ASME pipe schedules.

Common schedules include:

SCH 5
SCH 10
SCH 20
SCH 40
SCH 80
SCH 160

Selection of pipe thickness depends on system pressure, operating temperature, and applicable engineering codes.

Different surface treatments can be supplied according to project requirements.

Common surface finishes include:

1 pickled and passivated surface
2 bright annealed surface
3 polished surface
4 sand blasted surface

These surface treatments improve corrosion resistance and enhance product appearance.

Strict inspection procedures are applied during manufacturing to ensure compliance with international standards.

Typical testing methods include:

1 chemical composition analysis
2 mechanical property testing
3 hydrostatic pressure test
4 eddy current testing
5 ultrasonic testing
6 PMI (Positive Material Identification)
7 intergranular corrosion testing
8 dimensional inspection

Womic Steel provides complete mill test certificates and quality documentation for each shipment.

316L stainless steel pipes are widely used in industries requiring strong corrosion resistance and reliable performance.

Typical applications include:

1 offshore oil and gas platforms
2 chemical processing plants
3 petrochemical refineries
4 desalination plants
5 pharmaceutical manufacturing facilities
6 food processing industries
7 heat exchanger systems
8 marine engineering structures

These industries rely on corrosion-resistant materials to ensure safe and long-term operation of piping systems.

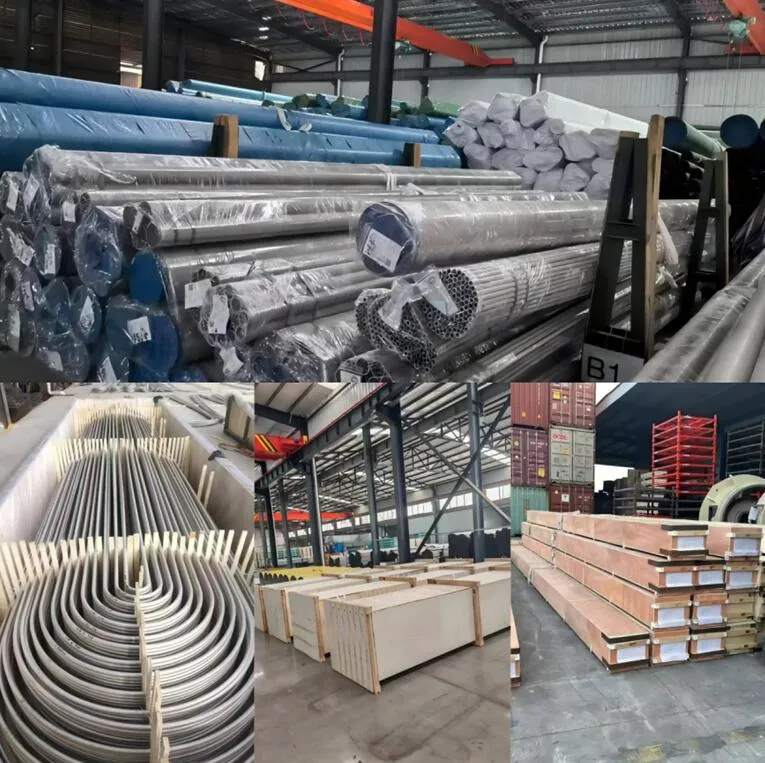

Proper packaging ensures that stainless steel pipes remain protected during transportation and storage.

Typical export packing methods include:

1 wooden case packing
2 steel strip bundle packing
3 plastic end cap protection
4 waterproof wrapping materials

Womic Steel provides professional export packaging designed for international sea transportation.

As an experienced stainless steel pipe manufacturer, Womic Steel offers reliable products and professional services.

Key advantages include:

1 advanced stainless steel pipe production equipment
2 strict quality inspection and testing systems
3 wide range of stainless steel pipe grades and sizes
4 competitive pricing for global engineering projects
5 stable supply capacity and reliable delivery schedules

With extensive experience supplying stainless steel piping products worldwide, Womic Steel provides dependable solutions for industrial piping systems.
