Monel 400 (Nickel-Copper) Steel Pipe Fittings for HF Alkylation, Seawater Brine, and Shipbuilding

Tags : U-bent Tubular Exchanger Tubes , Stainless Steel Coil , Heat Exchanger Tube

High-Performance Monel 400 (UNS N04400) Steel Pipe Fittings for Hydrofluoric Acid Service, Marine Propulsion, and High-Velocity Seawater Systems

Womic Steel manufactures premium Monel 400 Steel Pipe Fittings, including elbows, tees, reducers, caps, stub ends, crosses, and nipples. Our nickel-copper alloy fittings provide exceptional resistance to hydrofluoric acid (HF), high-velocity seawater brine, and chloride stress corrosion cracking. They are widely used in HF alkylation units, marine propulsion cooling water lines, shipboard piping, and seawater heat exchanger connections. With high strength and excellent erosion resistance, Monel 400 fittings outlast copper-nickel and stainless steel in turbulent seawater service.

Inquiry Online Email To Us

Welcome to leave us a message

Key Features of Monel 400 Stainless Steel Pipe Fittings

Hydrofluoric Acid Resistance: Premier material for HF alkylation and anhydrous HF service.Seawater Erosion

Resistance: Handles velocities up to 10 m/s without impingement attack.

Chloride SCC Immune: Excellent for marine and brackish water.

Non-Magnetic & Biofouling Resistant.

Full Range: Butt-weld (ASME B16.9), socket-weld (B16.11), threaded (NPT).

International Certifications: ABS, BV, DNV, LR, NACE (limited), ASME.

International Standards and Corresponding Grades for Monel 400 Fittings

Standard	Application	Monel 400 Grade
ASME B16.9	Industrial butt-welding fittings (BW)	UNS N04400 (WP M400)
ASME B16.11	Socket-welding and threaded fittings (SW / NPT)	UNS N04400
ASTM B366	Factory-made wrought nickel alloy fittings	WP M400
MSS SP-43	Light-wall butt-welding fittings	N04400
EN 10253-2 (Type B)	European standard butt-welding fittings	2.4360 (NiCu30Fe)
EN 10253-4	European standard socket-welding fittings	NiCu30Fe
JIS B2311 / B2312	Japanese industrial standard steel pipe fittings	NW4400
GB/T 12459	Chinese national standard seamless/welded fittings	N04400

Chemical Composition of Monel 400 Fittings

Element	Ni	Cu	Fe	C	Mn	P	S	Si
Monel 400	≥63.0	28.0–34.0	≤2.5	≤0.30	≤2.0	≤0.024	≤0.024	≤0.50

The high nickel content provides excellent chloride SCC resistance, while copper (28-34%) gives outstanding HF and seawater biofouling resistance

Mechanical Properties and Heat Treatment Requirements

Property	Unit	Monel 400 (Annealed)
Tensile Strength	MPa	≥480
Yield Strength (0.2% offset)	MPa	≥170
Elongation	%	≥35
Hardness (Brinell)	HBW	≤180
Density	g/cm³	8.80
Melting Range	°C	1300–1350

Heat Treatment Condition:
Monel 400 fittings are annealed at 700–800°C followed by air cooling. This treatment relieves internal stresses and restores ductility.

Pressure-Temperature Ratings for Monel 400 Fittings (per ASME B16.11)

Class	Pressure Rating (psig) @ 100°F	Pressure Rating (psig) @ 300°F	Pressure Rating (psig) @ 500°F
3000 LB	1900	1700	1450
6000 LB	3800	3400	2900

*Note: Monel 400 has limited use above 500°F. For higher temperatures, consider Monel K-500.*

Types and Production Range of Pipe Fittings from Womic Steel

Fitting Type	Main Forms	Manufacturing Method

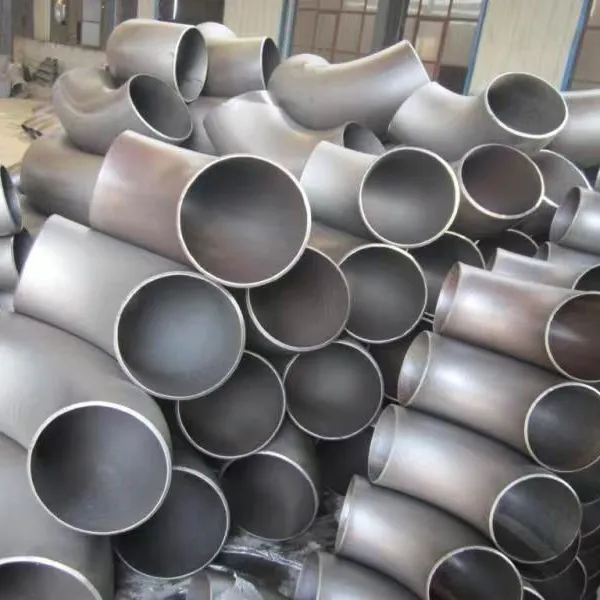

Elbow	45°, 90°, 180° (Long Radius LR / Short Radius SR)	Seamless / Forged

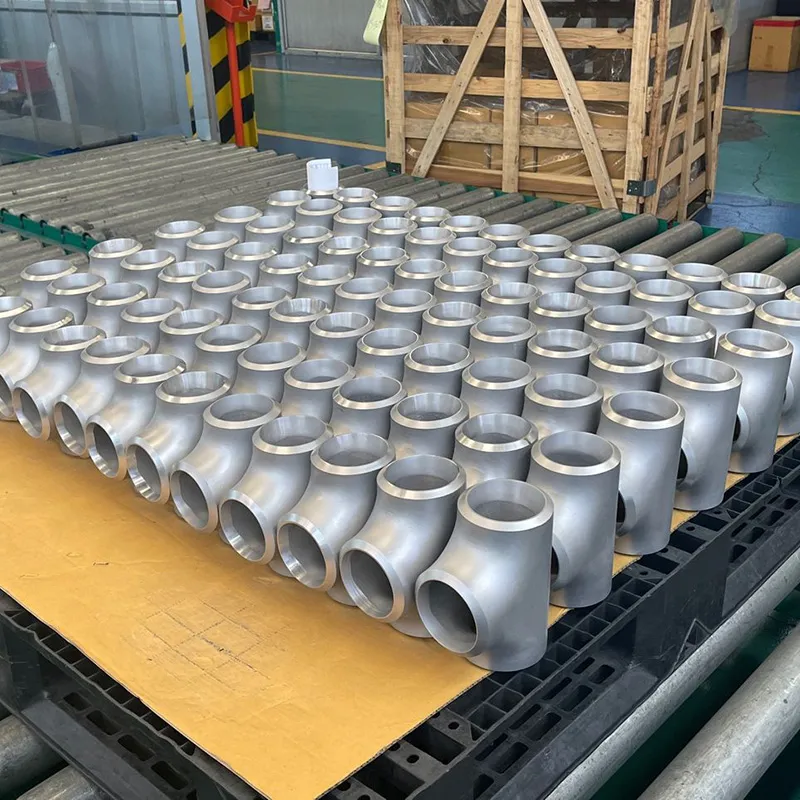

Tee	Equal, Reducing	Seamless / Forged
Cross	Equal	Fabricated
Reducer	Concentric, Eccentric	Seamless / Forged
Cap	Flat	Forged
Stub End (Lap Joint)	Long type, Short type	Seamless
Nipple	Threaded ends	Machined

Dimensions and Manufacturing Range

Parameter	Butt-Weld Fittings (BW)	Socket-Weld / Threaded Fittings (SW / NPT)
Nominal Size (DN/NPS)	1/2″ – 24″	1/8″ – 4″
Wall Thickness Schedule	Sch10S, Sch40S, Sch80S	2000LB, 3000LB, 6000LB
Manufacturing Process	Seamless (≤12″) / Fabricated (>12″)	Forging + Machining

Manufacturing Process of Monel 400 Pipe Fittings

Raw Material Selection: Monel 400 billet from Special Metals or VDM Metals.

Cutting & Heating: Precise cutting and induction heating.

Forming: Hot forging or extrusion.

Annealing: 700–800°C, air cool.

Machining & Beveling: Precision machining for SW/threaded; beveling for BW.

Pickling: Removal of oxide scale.

Marking & Inspection: Laser marking with full traceability.

Surface Finishes for Monel 400 Fittings

Surface Finish	Description
Annealed & Pickled	Standard industrial finish.
Mechanically Polished	Smooth finish for marine applications.
Shot Blasted	Matte finish for shipbuilding (anti-skid).

Quality Control and Inspection

Chemical Analysis: PMI for Ni, Cu, Fe.

Mechanical Testing: Tensile, yield, elongation, hardness.

Dimensional Inspection: Go/no-go gauges, CMM.

NDT: 100% Penetrant Testing.

Third-Party Inspection: ABS, DNV, LR, BV available.

Applications of Monel 400 Pipe Fittings

HF Alkylation Units: Regenerator piping, acid cooler elbows.

Marine Propulsion: Seawater cooling lines, keel cooler fittings (ABS/DNV/LR certified).

Shipbuilding: Fire main piping, ballast system fittings.

Chemical Brine: Chlor-alkali plant brine connectors.

Aerospace: Hydraulic and fuel system fittings.

Packaging, Shipping, and Logistics

Small bore (≤2″): Cartons with moisture-proof film.

Large bore (≥2.5″): Wooden crates with foam padding.

End Protection: Plastic caps or thread protectors.

Ready stock for 1/2″–12″ Sch10S/Sch40S.

Classification society certificates available.

Frequently Asked Questions (FAQ)

1. Is Monel 400 resistant to sulfuric acid?
Only in deaerated acid; for oxidizing conditions, use Alloy 20 or 825.

2. Can Monel 400 be welded directly to carbon steel?
Yes, but use transition piece or proper filler (ERNiCu-7) to avoid galvanic corrosion.

3. What is the maximum temperature for HF service?
Around 150°C; higher temperatures require other alloys.

Why Choose Womic Steel for Monel 400 Pipe Fittings?

Proven marine and alkylation experience.

Stock of common sizes for shipbuilding.

Classification approvals (ABS, DNV, LR) provided.

Full traceability and MTR.
