Finned Tube Heat Exchanger Tubes

1 Product Types (Fin Types)

Extruded Finned Tubes

High Frequency Resistance Welded (HFW) Finned Tubes

L-Type Finned Tubes

LL-Type Finned Tubes

KL-Type Finned Tubes

G-Type (Embedded) Finned Tubes

Solid Fin Tubes (Integral Fins)

2 Tube Materials & Grades of Finned Tube Heat Exchanger Tubes:

Base Tube Materials:

Carbon Steel:ASTM A179, ASTM A192, ASTM A210, ASTM A106, ASTM A53

Alloy Steel:ASTM A213 T5 / T9 / T11 / T12 / T22 / T91

Stainless Steel:ASTM A213 TP304 / 304L / 316L / 321 / 347

Duplex & Super Duplex Stainless Steel:UNS S31803, S32205, S32750

Nickel Alloys (on request): Inconel 600 / 625 / 800 / 825, Hastelloy, Monel

Fin Materials:Carbon Steel, Aluminum, Stainless Steel, Copper,Alloy Steel

3 Applicable Standards of Finned Tube Heat Exchanger Tubes:

ASTM A179 / A192 / A210 / A213 / A106

ASME SA179 / SA192 / SA210 / SA213

EN 10216 / EN 10217

DIN 17175 / DIN 1629

BS 3059

GOST / JIS (on request)

TEMA & ASME Boiler & Pressure Vessel Code

4 Chemical Composition & Mechanical Properties of Finned Tube Heat Exchanger Tubes:

Chemical composition and mechanical properties strictly comply with the selected base tube standard (ASTM / EN / DIN).

Typical Mechanical Properties (Carbon Steel Base Tube):

Tensile Strength: 415–550 MPa

Yield Strength:≥205 MPa

Elongation:≥20%

5 Testing & Inspection Requirements of Finned Tube Heat Exchanger Tubes:

Chemical Composition Analysis

Mechanical Tests (Tensile, Flattening, Expansion)

Eddy Current / Ultrasonic Testing

Hydrostatic Test

Fin Bond Strength Test

Dimensional Inspection

PMI (for stainless & alloy steel)

Base Tube Size

Outer Diameter: 12.7 mm–168.3 mm (1/2"–6")

Wall Thickness: 1.2 mm–8.0 mm

Length: Up to 18,000 mm (custom length available)

Fin Dimensions

Fin Height: 5 mm–26 mm

Fin Thickness: 0.8 mm–2.5 mm

Fin Density: 5–20 Fins per Inch (FPI)

Finned Tube Heat Exchanger Tubes are widely used in:

Air-cooled heat exchangers (ACHE)

Power plant boilers & economizers

Petrochemical & refinery units

Heat recovery systems

Condensers & coolers

Waste heat boilers

HVAC & industrial heating systems

One-stop manufacturer of finned tubes & base tubes

Wide material coverage: carbon steel, alloy steel, stainless steel, nickel alloy

Advanced finning machines & strict process control

Full compliance with ASTM / ASME / EN / DIN

Third-party inspection accepted (SGS, BV, TUV)

Competitive factory-direct pricing & stable delivery

Raw Material Inspection & PMI

Base Tube Surface Preparation

Finning Process (Extruded / Welded / Embedded)

Heat Treatment (if required)

Fin Bond Strength Testing

NDT Inspection

Final Dimensional & Visual Inspection

Plastic caps on tube ends

Anti-rust oil coating

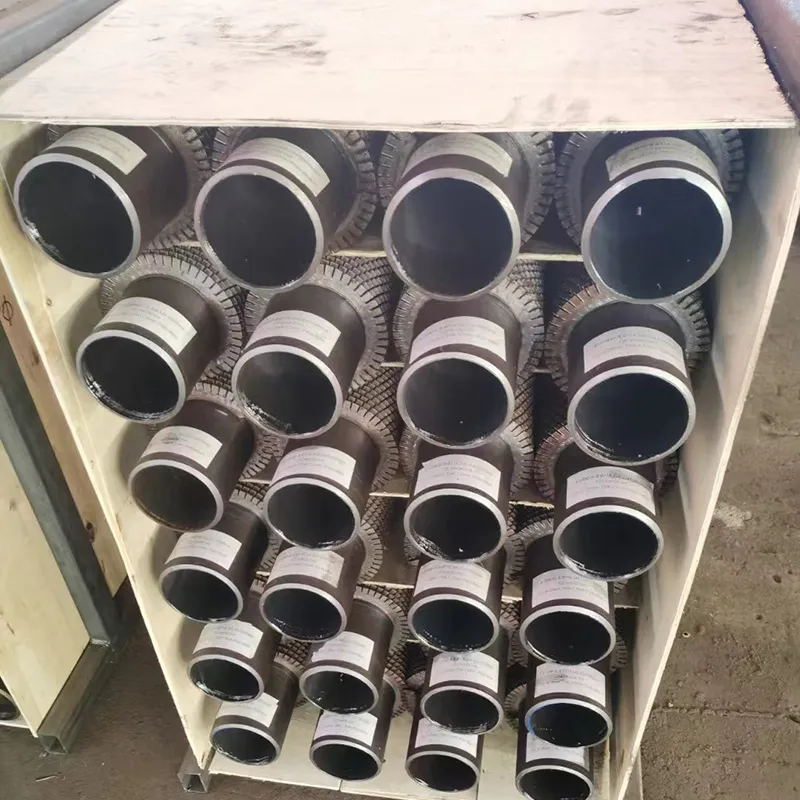

Seaworthy wooden cases or steel frames

Bundled packing with steel strips

Customized export packing available

Container shipment (20FT / 40FT / Open Top)

Break bulk shipment for oversized tubes

Incoterms: FOB / CFR / CIF / DDP

Shipment from major Chinese ports: Shanghai, Tianjin, Qingdao
