316H Stainless Steel Pipe combines corrosion resistance, high-temperature strength, and structural reliability. Its increased carbon content enhances creep strength and improves mechanical stability at temperatures above 500°C.
Key characteristics include:
1.Excellent high-temperature strength and creep
resistance.
2.Superior corrosion resistance in chloride and chemical environments.
3.Good oxidation resistance under elevated temperature conditions.
4.Strong mechanical stability for high-pressure industrial systems.
5.High durability and long service life in harsh operating environments.
6.Good weldability and fabrication performance for industrial piping systems.
316H Stainless Steel Pipe is produced according to multiple international standards to ensure compatibility with global engineering projects.
Common standards include:
ASTM A312 / A213 / A269 – TP316H Stainless Steel Pipe and
Tube
ASTM A358 – Electric Fusion Welded 316H Stainless Steel Pipe
EN 10216-5 – 1.4401 / 1.4404 related grades
JIS G3459 – SUS316H Stainless Steel Pipe
GB/T 14976 – 06Cr17Ni12Mo2H Stainless Steel Pipe
These standards specify the chemical composition, mechanical properties, manufacturing requirements, inspection methods, and testing procedures necessary to ensure high-quality stainless steel pipes for industrial applications.
Womic Steel supplies316H Stainless Steel Pipesin a wide range of sizes to meet various engineering requirements.
Seamless Pipe Size Range:
OD: 6 mm – 630 mm
Wall Thickness: 1 mm – 60 mm
Welded Pipe Size Range:
OD: 21 mm – 2000 mm
Wall Thickness: 2 mm – 40 mm
Standard pipe schedules available include SCH5, SCH10, SCH20, SCH40, SCH80, SCH160, and XXS.
Custom sizes and special specifications can also be produced according to project requirements.
The chemical composition of 316H Stainless Steel Pipe is carefully controlled to achieve both corrosion resistance and high-temperature mechanical performance.
Typical chemical composition (ASTM standard):
Carbon (C): 0.04 – 0.10%
Chromium (Cr): 16.0 – 18.0%
Nickel (Ni): 10.0 – 14.0%
Molybdenum (Mo): 2.0 – 3.0%
Manganese (Mn): ≤ 2.0%
Silicon (Si): ≤ 1.0%
Phosphorus (P): ≤ 0.045%
Sulfur (S): ≤ 0.03%
The presence of molybdenum significantly improves resistance to pitting and crevice corrosion, while the higher carbon content increases creep strength at elevated temperatures.
316H Stainless Steel Pipe provides reliable mechanical strength for both high-pressure and high-temperature environments.
Typical mechanical properties include:
Yield Strength: ≥ 205 MPa
Tensile Strength: ≥ 515 MPa
Elongation: ≥ 35%
Hardness: ≤ 201 HBW
These properties ensure that the pipe maintains structural integrity under demanding industrial conditions such as high-temperature steam systems and chemical processing plants.
Different specifications can be customized according to special requirements.
|
Execution Standard |
Main Standard |
Standard Grade |
|
GB (China) |
GB13296, GB/T14976, GB5310, GB/T21833 |
06Cr19Ni10, 022Cr19Ni10, 06Cr25Ni20, 07Cr17Ni12Mo2, 022Cr17Ni12Mo2, 07Cr19Ni11Nb, 022Cr22Ni5Mo3N |
|
NB (China Petrochemical Standard) |
NB/T 47019.1, NB/T 47019.5, NB/T 47019.6, NB/T 47019.7, NB/T 47019.9 |
06Cr19Ni10, 022Cr19Ni10, 06Cr25Ni20, 07Cr17Ni12Mo2, 06Cr19Ni13Mo3, 07Cr18Ni11Ti, 07Cr18Ni11Nb |
|
ASTM (USA) |
ASTM / ASME SA213,ASTM A249-24, ASTM A269,ASTM A312-24, ASTM A358-24, ASTM A376,ASTM A450,ASTM A511, ASTM B677, ASTM B622, ASTM B626, ASTM B464, ASTM B466,ASTM B677,ASTM A778-24, ASTM A813-24, ASTM A1016-23, ASTM A999-23, ASTM A789-24, ASTM A790-24 |
304 / 304L,304N,TP304H,TP309,TP310S,S 316 / 316L,TP316H,TP316N,TP316LN,TP316Ti, TP317L / 317,321 / 321H, 347 / 347H, S31254 (904L equivalent), S31803 (Duplex), S32205, S32750, S32760, S32404, S32550, S32520, S32900, S39274,UNS N08825, UNS N06625, UNS N10276,Alloy 20, Incoloy 800, Inconel 600, Inconel 690, Hastelloy B2, Alloy 200/201, Hastelloy C22 |
|
ASME (USA) |
SA/SB213, SA268, SA312, SA376, SA789, SA790, SB407, SB423, SB444, SB677 |
TP304/L/H, TP316/L/H/Ti, TP321/H, TP347/H, TP904L, S31254, S31803, S32205, S32750, S32760, N08810, N08825, N08020 |
|
EN / DIN (Europe) |
EN 10216-5, EN 10297-2, EN 10217-7 (2021),EN 10312 |
X2CrNi18-9 (1.4307), X5CrNi18-10 (1.4301), X2CrNiMo17-12-2 (1.4404), X5CrNiMo17-12-2 (1.4401), X6CrNiMoTi17-12-2 (1.4571), X2CrNiMoN22-5-3 (1.4462) |
|
JIS (Japan) |
JIS G3459, JIS G3463 |
SUS304/TP, SUS304LTP, SUS304HTB, SUS316/TP, SUS316LTP, SUS321TP, SUS347TP, SUS310STP |
|
GOST (Russia) |
GOST 9941, GOST 5632 |
08Х18Н10, 12Х18Н10Т, 10Х17Н13М2Т, 03Х17Н14М3, 08Х22Н6Т, 10Х17Н13М2Т, 03Х21Н21М4ГБ |
|
ISO (International) |
ISO 1127, ISO 9329-4 |
X2CrNi18-9, X2CrNiMo17-12-2, X2CrNiMoN22-5-3, X2CrNiMo17-13-3 |
Womic Steel adopts advanced production technology to ensure each316H Seamless Stainless Steel Pipemeets exact specifications and flawless surface quality.
1. Raw Material Selection:High-quality316HStainless Steel Pipe billets from certified mills (Baosteel, TISCO, POSCO).
2. Heating and Piercing:Billets heated to a controlled temperature and pierced using a rotary piercing mill to form hollow shells.
3. Hot Rolling:Shells elongated and rolled to desired size.
4. Cold Drawing / Cold Pilgering:Pipes refined to precise dimensions and improved surface finish.
5. Solution Annealing:Heat treatment to restore corrosion resistance and ductility.
6. Pickling & Passivation:Removal of oxides and creation of passive film for enhanced corrosion protection.
7. Straightening and Dimensional Calibration:Ensures consistent roundness and wall uniformity.
8. Final Inspection & Marking:Each pipe tested, marked with grade, heat number, and standard before packing.
This process guarantees a smooth internal bore, high structural integrity, and exceptional corrosion resistance across all batches of Womic Steel’s316HSeamless Steel Pipe.
Womic Steel utilizes state-of-the-art manufacturing technology to ensure every316HWelded Stainless Steel Pipe meets precise specifications and delivers excellent surface quality and performance.
1. Raw Material Selection:High-quality316Hstainless steel strips/coils from certified suppliers (e.g., Baosteel, TISCO, POSCO).
2. Slitting & Uncoiling:The steel coil is slit to the required width and uncoiled for feeding into the forming mill.
3. Forming & Welding:The strip is progressively formed into a cylindrical shape and the edges are welded together using advanced TIG or Plasma welding techniques to create a solid weld seam.
4. Weld Seam Treatment:The external weld bead is removed to achieve a smooth surface, and the internal bead may be controlled or treated for bore cleanliness.
5. Solution Annealing:A full heat treatment process is applied to dissolve carbides, restore corrosion resistance, and relieve stresses from welding and forming.
6. Sizing & Calibration:The pipe is passed through a sizing mill to achieve the final precise outer diameter and roundness.
7. Straightening:The pipe is straightened to ensure optimal linearity.
8. Pickling & Passivation:Chemical treatment removes scale and impurities, while promoting the formation of a protective passive oxide layer on the surface, including the weld zone.
9. Non-Destructive Testing (NDT):The weld seam is inspected using methods like Eddy Current or Ultrasonic Testing to ensure integrity and quality.
10. Final Inspection & Marking:Each pipe undergoes dimensional checks, visual inspection, and is marked with grade, heat number, and relevant standards before packaging.
This controlled process guarantees a consistent weld seam, excellent dimensional accuracy, and superior corrosion resistance for every batch of Womic Steel's316HWelded Steel Pipes.
Outside Diameter:6mm – 1219mm (1/4" – 48")
Wall Thickness:0.5mm – 50mm (SCH 5S – SCH XXS)
Length:Up to 12m(fixed or random)
Tolerances:According to ASTM A999 / EN ISO 1127
|
ANSI B 36.19/ANSI B36.10 DIMENSIONS OF SEAMLESS &WELDED STAINLESS STEEL PIPE |
|||||||||||||||||||
|
公称尺寸 |
外径 |
ANSIB36.19 |
ANSIB36.10ANSIB36.10 |
||||||||||||||||
|
DN |
NPS |
mm |
5S |
10S |
40S |
80S |
10 |
20 |
30 |
STD |
40 |
60 |
XS |
80 |
100 |
120 |
140 |
160XXS |
|
|
6 |
1/8" |
10.29 |
|
1.24 |
1.73 |
2.41 |
|
|
|
1.73 |
1.73 |
|
2.41 |
2.41 |
|
|
|
|
|
|
8 |
1/4" |
13.72 |
|
1.65 |
2.24 |
3.02 |
|
|
|
2.24 |
2.24 |
|
3.02 |
3.02 |
|
|
|
|
|
|
10 |
3/8" |
17.15 |
|
1.65 |
2.31 |
3.20 |
|
|
|
2.31 |
2.31 |
|
3.20 |
3.20 |
|
|
|
|
|
|
15 |
1/2" |
21.34 |
1.65 |
2.11 |
2.77 |
3.73 |
|
|
|
2.77 |
2.77 |
|
3.73 |
3.73 |
|
|
|
4.78 |
7.47 |
|
20 |
3/4" |
26.67 |
1.65 |
2.11 |
2.87 |
3.91 |
|
|
|
2.87 |
2.87 |
|
3.91 |
3.91 |
|
|
|
5.56 |
7.82 |
|
25 |
1" |
33.4 |
1.65 |
2.77 |
3.38 |
4.55 |
|
|
|
3.38 |
3.38 |
|
4.55 |
4.55 |
|
|
|
6.35 |
9.09 |
|
32 |
1 1/4" |
42.16 |
1.65 |
2.77 |
3.56 |
4.85 |
|
|
|
3.56 |
3.56 |
|
4.85 |
4.85 |
|
|
|
6.35 |
9.70 |
|
40 |
1 1/2" |
48.26 |
1.65 |
2.77 |
3.68 |
5.08 |
|
|
|
3.68 |
3.68 |
|
5.08 |
5.08 |
|
|
|
7.14 |
10.16 |
|
50 |
2" |
60.33 |
1.65 |
2.77 |
3.91 |
5.54 |
|
|
|
3.91 |
3.91 |
|
5.54 |
5.54 |
|
|
|
8.74 |
11.07 |
|
65 |
2 1/2" |
73.03 |
2.11 |
3.05 |
5.16 |
7.01 |
|
|
|
5.16 |
5.16 |
|
7.01 |
7.01 |
|
|
|
9.52 |
14.02 |
|
80 |
3" |
88.9 |
2.11 |
3.05 |
5.49 |
7.62 |
|
|
|
5.49 |
5.49 |
|
7.62 |
7.62 |
|
|
|
11.13 |
15.24 |
|
90 |
3 1/2" |
101.6 |
2.11 |
3.05 |
5.74 |
8.08 |
|
|
|
5.74 |
5.74 |
|
8.08 |
8.08 |
|
|
|
|
|
|
100 |
4" |
114.3 |
2.11 |
3.05 |
6.02 |
8.56 |
|
|
|
6.02 |
6.02 |
|
8.56 |
8.56 |
|
11.13 |
|
13.50 |
17.12 |
|
125 |
5” |
141.3 |
2.77 |
3.40 |
6.55 |
9.52 |
|
|
|
6.55 |
6.55 |
|
9.52 |
9.52 |
|
12.70 |
|
15.90 |
19.05 |
|
150 |
6" |
168.28 |
2.77 |
3.40 |
7.11 |
10.97 |
|
|
|
7.11 |
7.11 |
|
10.97 |
10.97 |
|
14.30 |
|
18.20 |
21.95 |
|
200 |
8" |
219.08 |
2.77 |
3.76 |
8.18 |
12.70 |
|
6.35 |
7.04 |
8.18 |
8.18 |
10.30 |
12.70 |
12.70 |
15.10 |
18.20 |
20.60 |
23.00 |
22.22 |
|
250 |
10" |
273.05 |
3.40 |
4.19 |
9.27 |
12.70 |
|
6.35 |
7.80 |
9.27 |
9.27 |
12.70 |
12.70 |
15.09 |
18.26 |
21.44 |
25.40 |
28.58 |
|
|
300 |
12" |
323.85 |
3.96 |
4.57 |
9.52 |
12.70 |
|
6.35 |
8.38 |
9.52 |
10.31 |
14.27 |
12.70 |
17.48 |
21.44 |
25.40 |
28.58 |
33.32 |
|
|
350 |
14" |
355.6 |
3.98 |
4.78 |
|
|
6.35 |
7.92 |
9.52 |
9.52 |
11.13 |
15.09 |
12.70 |
19.05 |
23.83 |
27.79 |
31.75 |
35.71 |
|
|
400 |
16" |
406.4 |
4.19 |
4.78 |
|
|
6.35 |
7.92 |
9.52 |
9.52 |
12.70 |
16.66 |
12.70 |
21.44 |
26.19 |
30.96 |
36.53 |
40.49 |
|
|
450 |
18" |
459.2 |
4.19 |
4.78 |
|
|
6.35 |
7.92 |
11.13 |
9.52 |
14.27 |
19.05 |
12.70 |
23.83 |
29.36 |
34.92 |
39.67 |
45.24 |
|
|
500 |
20" |
508 |
4.77 |
5.53 |
|
|
6.35 |
9.52 |
12.70 |
9.52 |
15.09 |
20.62 |
12.70 |
26.19 |
32.54 |
38.10 |
44.45 |
50.01 |
|
|
550 |
22" |
558.8 |
4.77 |
5.53 |
|
|
6.35 |
9.52 |
12.70 |
9.52 |
15.87 |
22.22 |
12.70 |
28.57 |
34.92 |
41.27 |
47.62 |
53.97 |
|
|
600 |
24" |
609.6 |
5.54 |
6.35 |
|
|
6.35 |
9.52 |
14.70 |
9.52 |
17.48 |
24.61 |
12.70 |
30.96 |
38.89 |
46.02 |
52.37 |
59.94 |
|
|
650 |
26" |
660.4 |
|
|
|
|
7.92 |
12.70 |
|
9.52 |
|
|
12.70 |
|
|
|
|
|
|
|
700 |
28" |
711.2 |
|
|
|
|
7.92 |
12.70 |
15.88 |
9.52 |
|
|
12.70 |
|
|
|
|
|
|
|
750 |
30" |
762 |
6.35 |
7.92 |
|
|
7.92 |
12.70 |
15.88 |
9.52 |
|
|
12.70 |
|
|
|
|
|
|
|
800 |
32" |
812.8 |
|
|
|
|
7.92 |
12.70 |
15.88 |
9.52 |
|
|
12.70 |
|
|
|
|
|
|
Womic Steel offers a wide range of surface finishes to meet various industrial, sanitary, and decorative applications.
|
316H Stainless Steel Pipe Surface Type |
316H Stainless Steel Pipe Description |
|
Annealed & Pickled (AP Finish) |
Bright silver appearance after acid treatment, suitable for industrial piping. |
|
Bright Annealed (BA Finish) |
Mirror-like surface obtained through controlled atmosphere annealing. |
|
Polished Finish (180#, 240#, 320#, 400#, 600#) |
Smooth mechanical finish suitable for decorative and architectural use. |
|
Mirror Polished (8K) |
Ultra-reflective surface ideal for sanitary and high-end design. |
|
Brushed / Hairline Finish |
Satin linear texture for furniture and interior design. |
|
Passivated Finish |
Surface chemically treated to enhance corrosion protection. |
|
Electropolished Finish |
Extremely clean, smooth, and hygienic finish ideal for food and pharmaceutical equipment. |
Each 316H Stainless Steel Pipe surface is inspected for uniform gloss, absence of pits, and consistent finish quality.
316H Stainless Steel Pipe is widely used in industries requiring excellent high-temperature strength and corrosion resistance in demanding environments:
316H Stainless Steel Pipe for Chemical and Petrochemical Industry: High-temperature process piping, refinery systems, and acid-resistant pipelines.
316H Stainless Steel Pipe for Oil and Gas Industry: High-temperature transport pipelines and refinery equipment.
316H Stainless Steel Pipe for Heat Exchanger Tubes: Boilers, superheaters, condensers, and evaporators operating at elevated temperatures.
316H Stainless Steel Pipe for Power Generation Industry: Steam pipelines, pressure vessels, and high-temperature heat transfer systems.
316H Stainless Steel Pipe for Marine Engineering: Offshore pipelines, desalination systems, and seawater handling equipment.
316H Stainless Steel Pipe is ideal for a wide variety of industries, offering long service life and corrosion resistance in demanding conditions:
316H Stainless Steel Pipe for Chemical and Petrochemical Industry:Process piping, acid-resistant lines.
316H Stainless Steel Pipe for Food and Beverage Industry:Sanitary systems, liquid transfer, brewing pipelines.
316H Stainless Steel Pipe for Pharmaceutical Equipment:Clean piping, sterile environments.
316H Stainless Steel Pipe for Heat Exchanger Tubes:Boilers, condensers, and evaporators.
316H Stainless Steel Pipe for Marine Engineering:Offshore pipelines, seawater systems, desalination, ballast piping (ship classification certifications available from ABS, BV, DNV, LR, GL, RINA, CCS, KR, NK).
316H Stainless Steel Pipe for Construction and Decoration:Handrails, structural and architectural applications.
316H Stainless Steel Pipe for Water Treatment and Gas Systems:High-purity and corrosion-resistant pipelines.
Each316HStainless Steel Pipe is securely packed and clearly labeled to ensure safe and efficient transport worldwide.
General packaging: Bundle packing with woven fabric, iron strip bundle, plastic cap on two ends for local truck transport.
Hexagonal packaging: Bundle packing with woven fabric, iron strip bundle, plastic cap on two ends for local truck transport.
Packaging of welded pipe in medium and large sizes: Wrapped with woven fabric by automatic packaging for export sea-worthy transport.
Packaging for medium and large size welded pipes to be exported: Wooden or steel crate packaging for export sea-worthy transport.
General packaging for products to be exported: Wooden box for export sea-worthy transport.
Packaging of condensation pipe and low-pressure heater tube: Wooden box for local truck and export sea-worthy transport.
1. Direct cooperation with global shipowners ensures the most competitive freight rates.
2. Professional loading and securing teams guarantee damage-free shipment.
3. Efficient document preparation, minimizing customs delays.
4. Rapid delivery time — standard sizes kept in ready stock more than 10,000tons.
5. Continuous cargo tracking and after-sales follow-up to ensure smooth arrival at destination.

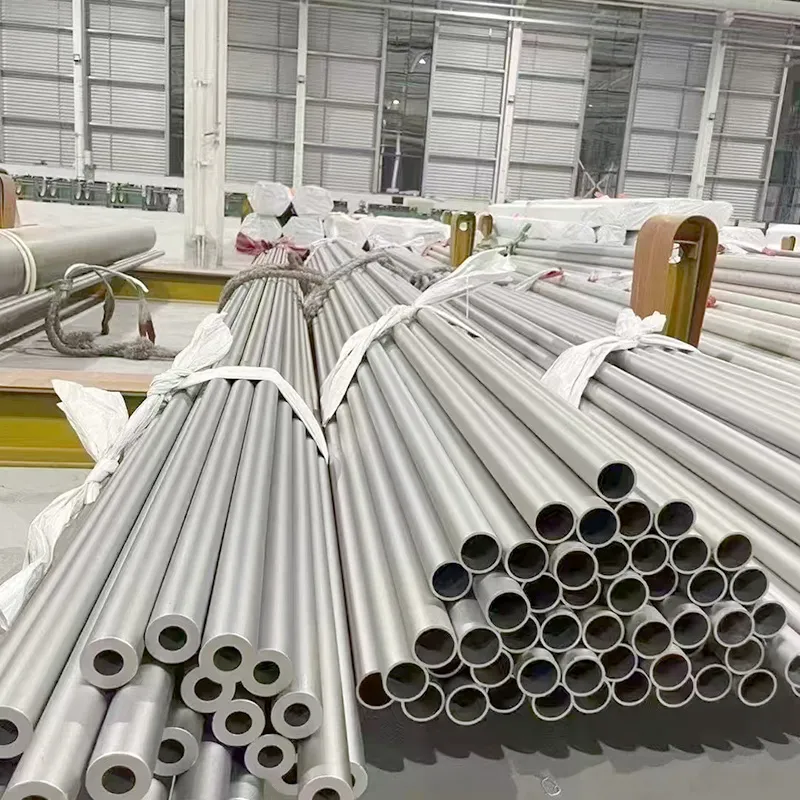

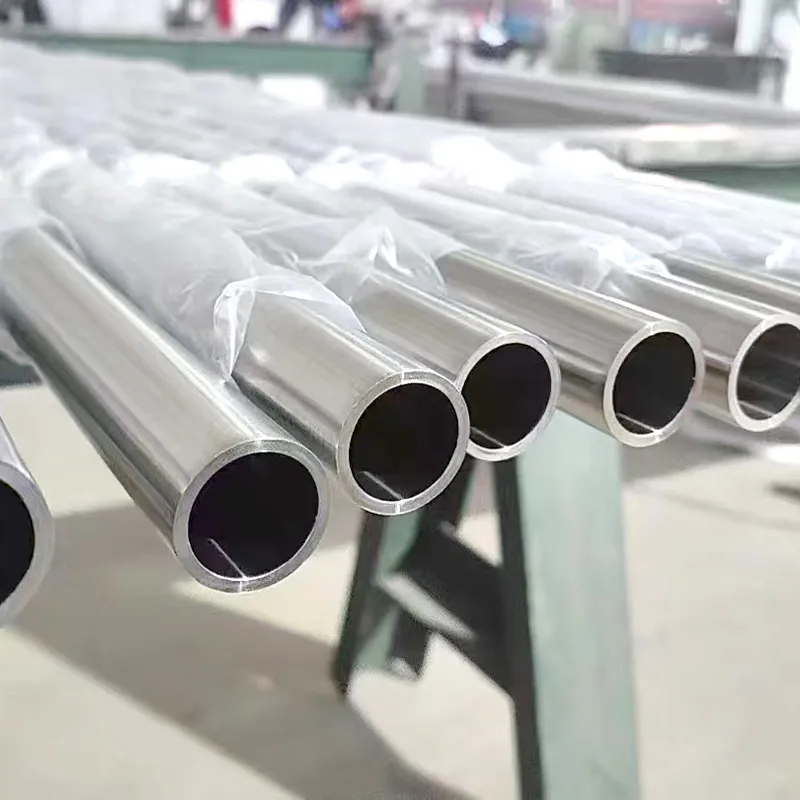

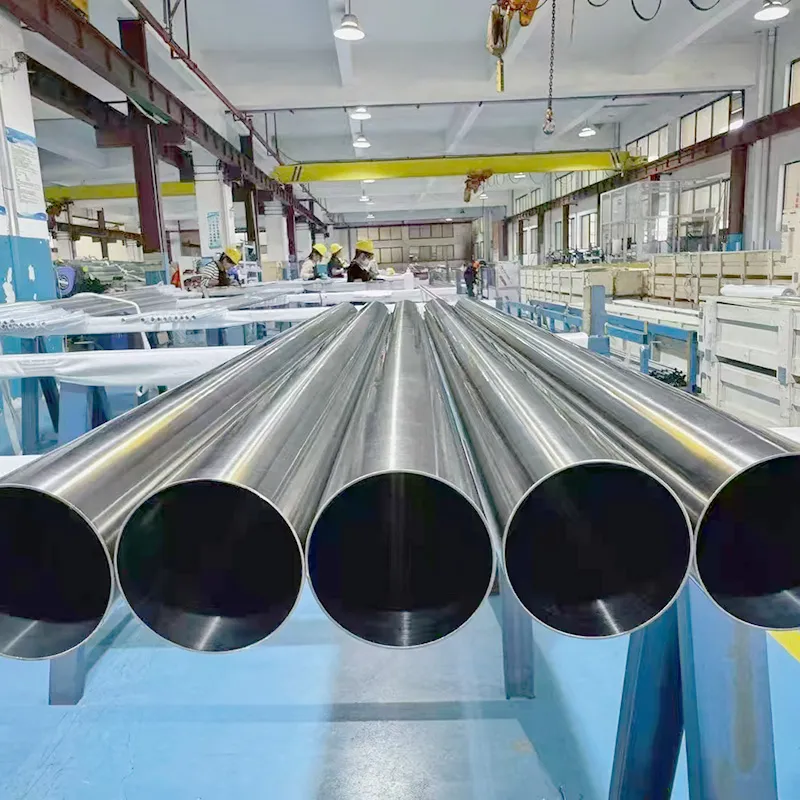

Womic Steel is a trusted manufacturer and exporter specializing in316H Stainless Steel Pipe,committed to delivering premium quality and professional service.
l Strict quality control under ISO and PED certification.
l Modern production lines and experienced technicians.
l Complete testing, inspection, and documentation support.
l Flexible customization and surface finishing options.
l Fast production cycle and reliable global shipping.
For inquiries, technical support, or to request a quotation for your specific clad pipe requirements, please contact us:
Website: www.womicstainless.com
E‑mail: info@womicstainless.com
Tel / WhatsApp / WeChat:
Victor: +86 15575100681
Jack: +86 18390957568
Womic Steel – Your reliable partner for high‑quality stainless steel seamless pipes, metallurgically bonded clad tubes, and custom solutions for corrosion‑resistant applications.
