Womic Stainless Steel Co., Ltd
Superior Acid Resistance: Excellent in H₂SO₄ (all concentrations up to moderate temperature), H₃PO₄, and organic acids.
NACE MR0175 Compliant: Fully qualified for sour service (H₂S) up to 232°C.
Excellent SCC Resistance: High nickel prevents chloride SCC.
Good Weldability: Niobium stabilization eliminates the need for post-weld heat treatment.
Full Range: Butt-weld (ASME B16.9), socket-weld (B16.11), threaded (NPT).
International Certifications: ABS, BV, DNV, LR, NORSOK, NACE, ASME.
|
Standard |
Application |
Alloy 825 Grade |
|
ASME B16.9 |
Industrial butt-welding fittings (BW) |
UNS N08825 (WP825) |
|
ASME B16.11 |
Socket-welding and threaded fittings (SW / NPT) |
UNS N08825 |
|
ASTM B366 |
Factory-made wrought nickel alloy fittings |
WPN8 825 |
|
MSS SP-43 |
Light-wall butt-welding fittings |
N08825 |
|
EN 10253-2 (Type B) |
European standard butt-welding fittings |
2.4858 (NiCr21Mo) |
|
EN 10253-4 |
European standard socket-welding fittings |
NiCr21Mo |
|
GB/T 12459 |
Chinese national standard seamless/welded fittings |
NS825 |
|
Element |
Ni |
Cr |
Fe |
Mo |
Cu |
Ti |
C |
Mn |
P |
S |
Si |
|
Alloy 825 |
38.0–46.0 |
19.5–23.5 |
≥22.0 |
2.5–3.5 |
1.5–3.0 |
0.6–1.2 |
≤0.05 |
≤1.0 |
≤0.03 |
≤0.03 |
≤0.5 |
The addition of copper (1.5-3.0%) provides exceptional resistance to sulfuric and phosphoric acids, while titanium stabilizes against intergranular corrosion.
|
Property |
Unit |
Alloy 825 (Annealed) |
|
Tensile Strength |
MPa |
≥585 |
|
Yield Strength (0.2% offset) |
MPa |
≥240 |
|
Elongation |
% |
≥30 |
|
Hardness (Brinell) |
HBW |
≤200 |
|
Density |
g/cm³ |
8.14 |
|
Melting Range |
°C |
1350–1400 |
Heat Treatment
Condition:
Alloy 825 fittings are solution annealed at 925–1040°C followed by
water quenching. This treatment restores optimum corrosion resistance and
ductility.
|
Class |
Pressure Rating (psig) @ 100°F |
Pressure Rating (psig) @ 400°F |
Pressure Rating (psig) @ 600°F |
|
3000 LB |
2100 |
1750 |
1550 |
|
6000 LB |
4200 |
3500 |
3100 |
Note: Ratings are typical for nickel alloys; consult ASME B16.34 for exact values.
|
Fitting Type |
Main Forms |
Manufacturing Method |
|

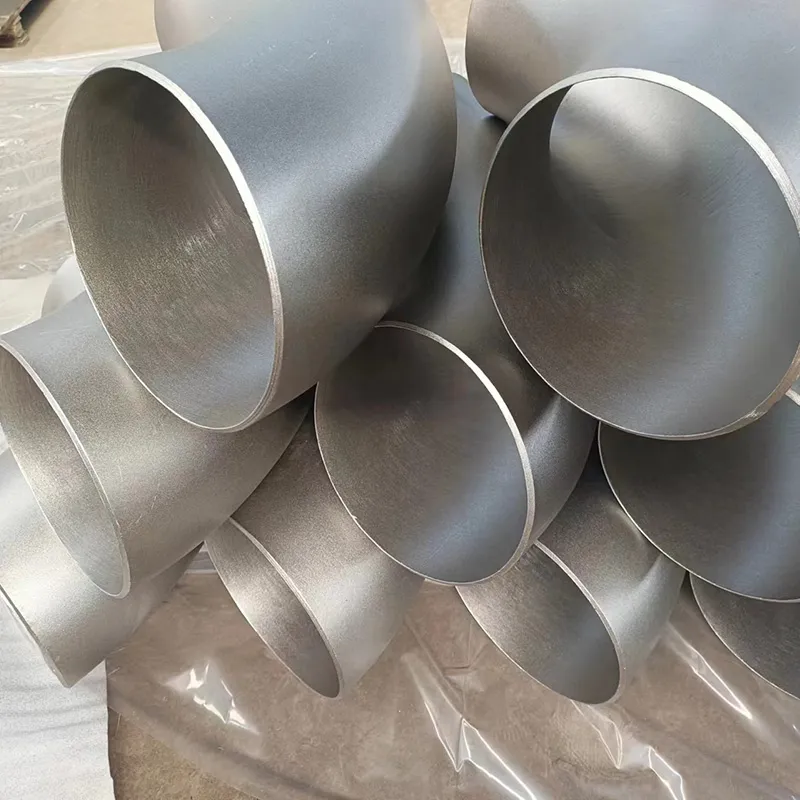

Elbow |
45°, 90°, 180° (Long Radius LR / Short Radius SR) |
Seamless / Forged |
|
Tee |
Equal, Reducing |
Seamless / Forged |
|
Cross |
Equal, Reducing |
Fabricated |
|
Reducer |
Concentric, Eccentric |
Seamless / Forged |
|
Cap |
Flat, Elliptical |
Forged |
|
Stub End (Lap Joint) |
Long type, Short type |
Seamless |
|
Nipple |
Threaded one end, Both ends, Full thread |
Machined |
|
Parameter |
Butt-Weld Fittings (BW) |
Socket-Weld / Threaded Fittings (SW / NPT) |
|
Nominal Size (DN/NPS) |
1/2″ – 24″ |
1/8″ – 4″ (DN6 – DN100) |
|
Wall Thickness Schedule |
Sch10S, Sch40S, Sch80S |
3000LB, 6000LB |
|
Manufacturing Process |
Seamless (≤12″) / Fabricated (>12″) |
Forging + Machining |
Raw Material Selection: Certified Alloy 825 billet from Special Metals, VDM Metals, or equivalent.
Cutting & Heating: Precise cutting and induction heating.
Forming: Hot forging or extrusion under controlled temperature.
Solution Annealing: Heat treated at 925–1040°C followed by water quenching.
Machining & Beveling: Precision machining for SW/threaded; beveling for BW.
Pickling & Passivation: Special acid blend for nickel alloys.
Marking & Inspection: Laser/inkjet marked with grade, heat number, size, and standard.
|
Surface Finish |
Description |
|
Annealed & Pickled (AP) |
Standard industrial finish – matte, oxide-free. |
|
Mechanically Polished |
Smooth finish (180#–400# grit) for general use. |
|
Electropolished |
Extremely clean, smooth surface – for pharmaceutical/high-purity applications. |
|
Passivated |
Chemically treated to enhance passive oxide layer. |
Chemical Analysis: PMI 100% verification of Ni, Cr, Mo, Cu, Ti.
Mechanical Testing: Tensile, yield, elongation, hardness.
Dimensional Inspection: Go/no-go gauges, CMM.
NDT: 100% Penetrant Testing (PT); UT/RT upon request.
Corrosion Testing: Intergranular corrosion test (ASTM G28).
Sour Service Qualification: NACE MR0175 HIC/SSC testing upon request.
Third-Party Inspection: SGS, BV, DNV, TUV available.
|
Parameter |
Size Range |
Permitted Tolerance |
|
Elbow Angle |
All sizes |
±0.5° |
|
End Outside Diameter |
≤4″ / ≤8″ / >8″ |
±1.6 mm / ±2.4 mm / ±3.2 mm |
|
Wall Thickness |
All |
Not less than 87.5% of nominal |
|
Thread (NPT) |
All |
Per ANSI B1.20.1 |
Sulfuric Acid Plants: Coolers, piping, tank connections.
Phosphoric Acid Production: Evaporators, heat exchanger fittings.
Oil & Gas Sour Service: Amine regenerator piping, sour water strippers.
Offshore Chemical Injection: Methanol / glycol lines.
Pickling Plants: Acid recovery systems.
Flue Gas Desulfurization (FGD): Slurry piping connections.

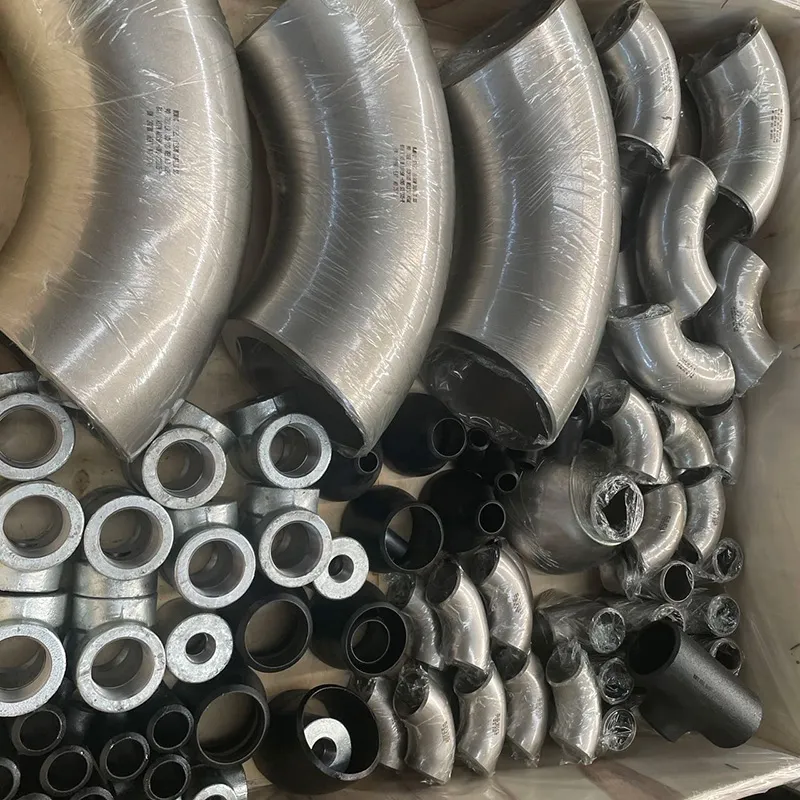

Small bore fittings (≤2″): Cartons or woven bags with moisture-proof film.
Large bore fittings (≥2.5″): Wooden crates with foam padding, individual wrapping.
End Protection: Plastic caps for butt-weld ends; thread protectors for threaded ends.
Labeling: Each fitting has a sticker (material, heat number, size) plus waterproof shipping marks.
Womic Steel's Delivery Strengths:
Ready stock: 1/2″–12″ Sch10S/Sch40S – dispatch within 24 hours.
Direct shipping cooperation with global shipowners.
Professional loading teams ensure damage-free shipment.
Full NACE certification and MTR provided.
1. How does Alloy
825 compare to Alloy 20?
Alloy 825 has higher nickel and molybdenum, better resistance to reducing acids
and H₂S, and is costlier than Alloy 20.
2. Is Alloy 825
resistant to hydrochloric acid?
Limited – for concentrated HCl, consider Hastelloy C276.
3. Can 825
fittings be used in seawater?
Yes, but super duplex is more cost-effective for high-velocity seawater applications.
Complete Product Range: Butt-weld, socket-weld, and threaded fittings – one-stop purchasing.
Strict Quality Control: ISO 9001, PED, NACE certified.
Traceable Raw Materials: From approved mills (Special Metals, VDM).
Full Traceability: Heat number to finished fitting.
Experienced in Acid & Sour Service: Phosphoric acid, sulfuric acid, sour gas projects.
Global Delivery: Exported to over 50 countries.
Tel / WhatsApp:
Victor: +86 15575100681
Jack: +86 18390957568
E-mail: info@womicstainless.com
Website: www.womicsteel.com
Contact Womic Steel today for a competitive quote on Alloy 825 stainless steel pipe fittings. We offer certified quality, fast production lead times, and reliable global delivery to keep your pipeline projects running smoothly.
Stock Examples:
90° LR Elbow: 2″ Sch40S, 4″ Sch10S
Equal Tee: 2″×2″ Sch40S, 4″×4″ Sch10S
Concentric Reducer: 4″×2″ Sch40S, 6″×4″ Sch80S
Cap: 3″ Sch40S, 6″ Sch40S
