Material & Grade of Nickel-Copper Alloy (UNS N04400)：
Material Name: Monel 400 (UNS N04400) / Nickel-Copper Alloy (UNS N04400)
UNS Number: N04400
Common Name: Nickel-Copper Alloy 400
Nickel Content: ~63%
Copper Content: ~28–34%
Applicable Standards of Nickel-Copper Alloy (UNS N04400)：
ASTM B165–Seamless Nickel Alloy Pipes & Tubes
ASTM B725–Welded Nickel Alloy Pipes
ASME SB165 / SB725
ASTM B564–Fittings
ASTM B366–Nickel Alloy Pipe Fittings
ASTM B462–Flanges
EN / ISO / DIN–Upon request
Monel 400 Pipes, Plate,Sheet &Coil Chemical Composition:
|
Grade |
C |
Mn |
Si |
S |
Cu |
Fe |
Ni |
|
Monel 400 |
0.30 max |
2.00 max |
0.50 max |
0.024 max |
28.00 – 34.00 |
2.50 max |
63.00 min |
Monel 400 Pipes, Plate,Sheet &Coil Mechanical Properties:
|
Element |
Density |
Melting Point |
Tensile Strength |
Yield Strength (0.2%Offset) |
Elongation |
|
Monel 400 |
8.8 g/cm3 |
1350 °C (2460 °F) |
Psi – 80,000,MPa – 550 |
Psi – 35,000,MPa – 240 |
40 % |
Equivalent Grades for Monel 400 Pipes, Plate,Sheet &Coil:
|
STANDARD |
WERKSTOFF NR. |
UNS |
JIS |
BS |
GOST |
AFNOR |
EN |
|
Monel 400 |
2.4360 |
N04400 |
NW 4400 |
NA 13 |
MHЖМц28-2,5-1,5 |
NU-30M |
NiCu30Fe |
Testing & Inspection Requirements of Nickel-Copper Alloy (UNS N04400)
• Chemical Composition Analysis
• Tensile Test
• Flattening / Flaring Test
• Eddy Current Test / UT Test
• Hydrostatic Test
• PMI (Positive Material Identification)
• Dimensional Inspection
• EN 10204 3.1 Mill Test Certificate
|
Grade |
Monel 400 | UNS N04400 |
|
Standard |
ASTM B127 / ASME SB127 / ASTM B165 / ASTM B725 |
|
Diameter |
6 mm–630 mm (1/4”–24”)，OD: 12 mm–2000 mm for welded |
|
Thickness |
0.1mm To 100 mm for Plates and Coil, 0.9 mm–40 mm forNickel alloypipes |
|
Plate Size |
1000 mm x 2000 mm,1220 mm x 2440 mm,1500 mm x 3000 mm,2000 mm x 2000 mm,2000 mm x 4000 mm |
|
Technique |
Cold Drawn Seamless Tube / Welded pipe Nickel alloy steel pipe/tube |
|
Finish |
Hot rolled plate (HR),Cold rolled sheet (CR),2B,2D,BA NO(8),SATIN (Met with Plastic Coated) |
|
Form |
Sheets,Plates,Coils,Slitting Coils,Perforated Coils,Foils,Rolls,Plain Sheet,Shim Sheet,Strip,Flats,Blank (Circle),Ring (Flange) |
|
Hardness |
Soft,Hard,Half Hard,Quarter Hard,Spring Hard etc. |
|
Applications |
Off-Shore Oil Drilling Companies,Power Generation,Petrochemicals,Gas Processing,Specialty Chemicals,Pharmaceuticals,Pharmaceutical Equipment,Chemical Equipment,Sea Water Equipment,Heat Exchangers,Condensers,Pulp and Paper Industry |
Heat Treatment of Nickel-Copper Alloy (UNS N04400)
Alloy 400, whether cold-worked or hot-worked, can undergo annealing or stress-relieving treatment to obtain the required strength and ductility while reducing deformation during processing.
Annealing of Nickel-Copper Alloy (UNS N04400):
Heat treatment must be performed in a sulfur-free reducing environment. The annealing temperature range is 704-982°C, but the most commonly used range is 871-982°C. If a lower annealing temperature is used, such as 740-816°C, the heat treatment time needs to be longer to reduce grain coarsening.
Stress Relief Treatment of Nickel-Copper Alloy (UNS N04400)
Stress relief treatment releases stress without altering the grain structure. Heating to 538-566°C and holding for 1-2 hours removes stress from hot-worked or cold-worked workpieces.
Hot Working of Nickel-Copper Alloy (UNS N04400):
The hot working temperature range for Alloy 400 is 927-1177°C. The optimal working temperature is approximately 1093°C. By using moderately controlled cold or hot working amounts, combined with appropriate heat treatment, the mechanical properties of the machined workpiece can be adjusted over a wide range.
Cold Working of Nickel-Copper Alloy (UNS N04400):
Alloy 400 can also be cold-worked. The mechanical properties of the finished product can be adjusted by controlling the amount of cold working and selecting appropriate heat treatment.
The Influence of Cold Working at Room Temperature on Tensile Properties
Machining of Nickel-Copper Alloy (UNS N04400):
Alloy 400 can be machined using industrial machining tools. Cold-drawn or cold-drawn materials with stress relief are more suitable for machining.
Welding of Nickel-Copper Alloy (UNS N04400):
Alloy 400 can be welded or brazed using either gas welding or electric welding. When using gas welding, the flame must be nearly neutral, the weld must be completed quickly, and rework is not permitted.

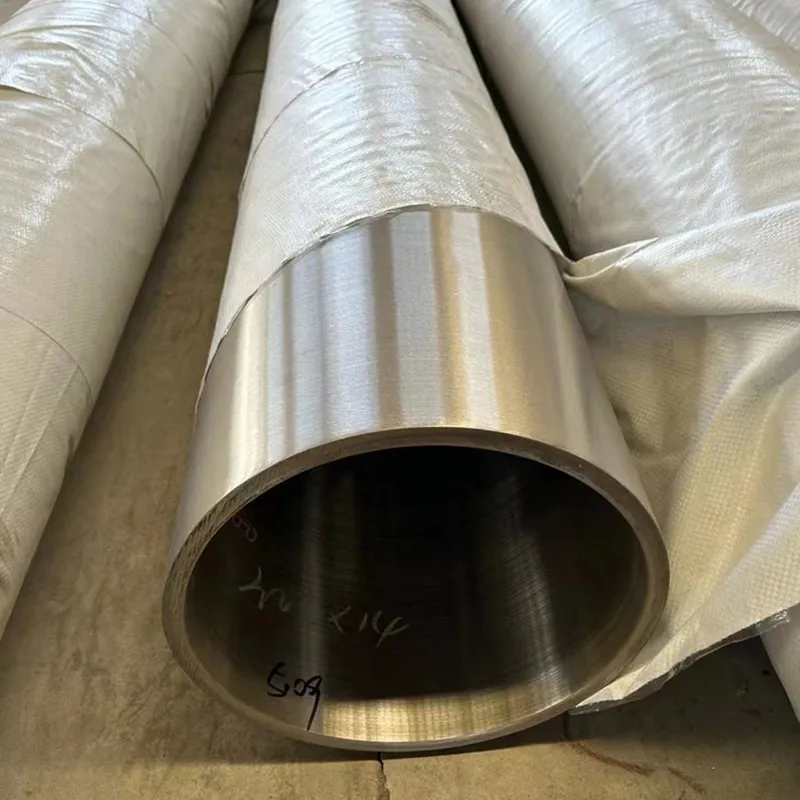

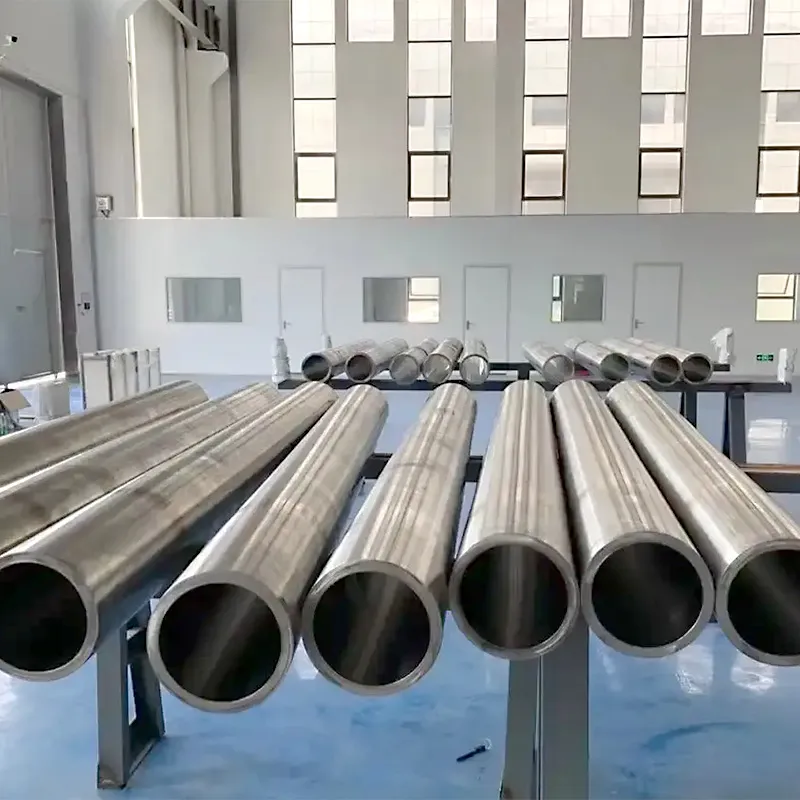

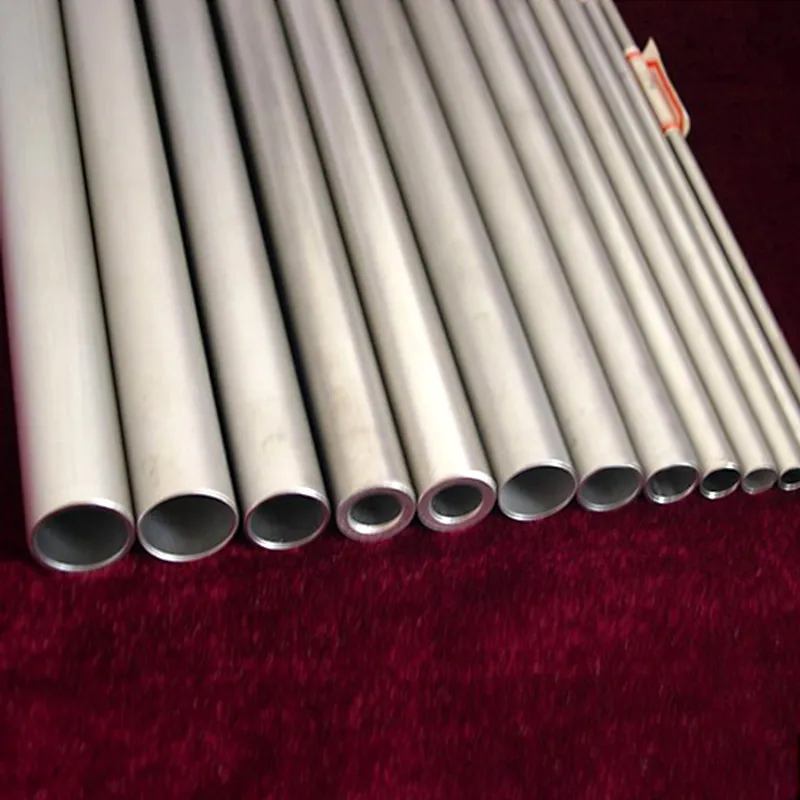

Monel 400 nickel alloy pipes are widely used in:
• Marine Engineering & Seawater Systemsused Nickel-Copper Alloy (UNS N04400) Pipes
• Offshore Platformsused Nickel-Copper Alloy (UNS N04400) Pipes
• Chemical Processing Equipmentused Nickel-Copper Alloy (UNS N04400) Pipes
• Oil & Gas Industryused Nickel-Copper Alloy (UNS N04400) Pipes
• Heat Exchangers & Condensersused Nickel-Copper Alloy (UNS N04400) Pipes
• Acid & Alkali Handling Systemsused Nickel-Copper Alloy (UNS N04400) Pipes
• Power Plants used Nickel-Copper Alloy (UNS N04400) Pipes
• Shipbuildingused Nickel-Copper Alloy (UNS N04400) Pipes
• Desalination Plantsused Nickel-Copper Alloy (UNS N04400) Pipes
Its excellent resistance to seawater corrosion, hydrofluoric acid, sulfuric acid, and alkaline solutions makes Monel 400 an ideal material for harsh environments.
• Over 20 years of experience in alloy steel pipes manufacturing
• Full supply range: pipes, tubes, fittings, flanges
• Strict quality control with international inspection standards
• Customized sizes & special requirements available
• Stable export to Europe, Middle East, Southeast Asia & America
• Competitive factory price & reliable delivery
• Raw Material Selection (Nickel Alloy Ingots)
• Vacuum Melting / AOD Refining
• Hot Extrusion / Piercing
• Cold Drawing / Cold Rolling
• Solution Annealing
• Straightening & Cutting
• Non-Destructive Testing
• Final Inspection & Packing
Plastic caps on both ends
Individual pipe wrapping
Wooden boxes / plywood cases
Steel bundles with anti-rust protection
Seaworthy export packing as per customer request
Shipping Methods:
Sea Freight (Container / Break Bulk)
Air Freight (for urgent orders)
Incoterms: FOB, CFR, CIF, DDP
Ports: Shanghai, Tianjin, Qingdao or as requested
Womic Steel–Professional Nickel Alloy Pipe Supplier
If you are looking for MONEL 400 (UNS N04400) pipes, tubes, fittings or flanges, please contact us now for technical support and competitive quotation.
