Exceptional Pitting Resistance (PRE ≥ 45): Outperforms all stainless and duplex in chloride pitting.
High Strength: Yield strength ≥ 415 MPa in annealed condition; cold worked options available.
Excellent Seawater Compatibility: No crevice corrosion, even in stagnant seawater.
Broad Temperature Range: -196°C to 980°C.
NACE MR0175 Compliant: Sour service up to 232°C.
Full Range: Butt-weld (ASME B16.9), socket-weld (B16.11), threaded (NPT).
International Certifications: ABS, BV, DNV, LR, NORSOK M-650, NACE MR0175.
|
Standard |
Application |
Alloy 625 Grade |
|
ASME B16.9 |
Industrial butt-welding fittings (BW) |
UNS N06625 (WP625) |
|
ASME B16.11 |
Socket-welding and threaded fittings (SW / NPT) |
UNS N06625 |
|
ASTM B366 |
Factory-made wrought nickel alloy fittings |
WPN6 625 |
|
MSS SP-43 |
Light-wall butt-welding fittings |
N06625 |
|
EN 10253-2 (Type B) |
European standard butt-welding fittings |
2.4856 (NiCr22Mo9Nb) |
|
EN 10253-4 |
European standard socket-welding fittings |
NiCr22Mo9Nb |
|
GB/T 12459 |
Chinese national standard seamless/welded fittings |
NS625 |
|
Element |
Ni |
Cr |
Fe |
Mo |
Nb+Ta |
C |
Mn |
P |
S |
Si |
Al |
Ti |
|
Alloy 625 |
≥58.0 |
20.0–23.0 |
≤5.0 |
8.0–10.0 |
3.15–4.15 |
≤0.10 |
≤0.5 |
≤0.015 |
≤0.015 |
≤0.5 |
≤0.4 |
≤0.4 |
The high molybdenum (8-10%) and niobium (3.15-4.15%) provide exceptional pitting resistance and solid solution strengthening.
|
Property |
Unit |
Alloy 625 (Annealed) |
|
Tensile Strength |
MPa |
≥825 |
|
Yield Strength (0.2% offset) |
MPa |
≥415 |
|
Elongation |
% |
≥30 |
|
Hardness (Brinell) |
HBW |
≤220 |
|
Density |
g/cm³ |
8.44 |
|
Melting Range |
°C |
1290–1350 |
Heat
Treatment Condition:
Alloy 625 fittings are solution annealed at 1095–1205°C followed by
water quenching. This treatment restores corrosion resistance and ductility.
|
Class |
Pressure Rating (psig) @ 100°F |
Pressure Rating (psig) @ 600°F |
Pressure Rating (psig) @ 800°F |
|
3000 LB |
2200 |
1950 |
1700 |
|
6000 LB |
4400 |
3900 |
3400 |
|
Fitting Type |
Main Forms |
Manufacturing Method |
|

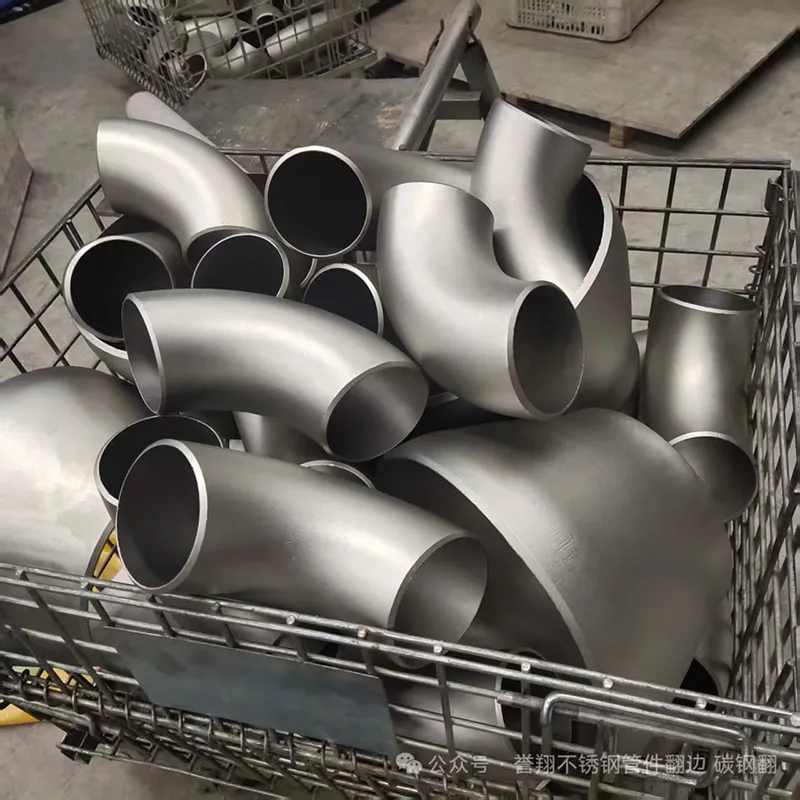

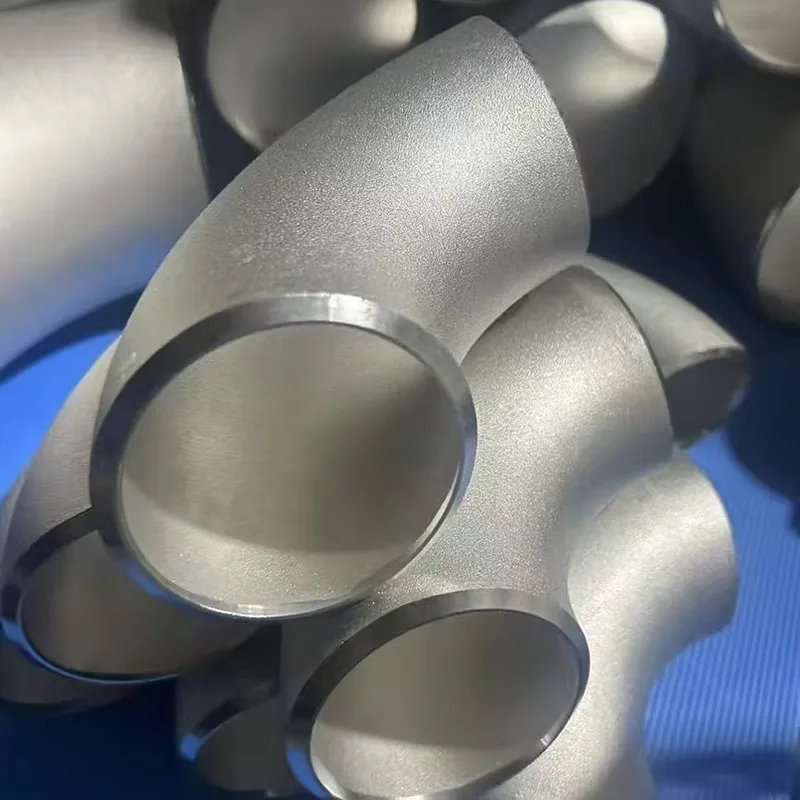

Elbow |
45°, 90°, 180° (Long Radius LR / Short Radius SR) |
Seamless / Forged |
|
Tee |
Equal, Reducing |
Seamless / Forged |
|
Cross |
Equal |
Fabricated |
|
Reducer |
Concentric, Eccentric |
Seamless / Forged |
|
Cap |
Flat, Elliptical |
Forged |
|
Stub End (Lap Joint) |
Long type, Short type |
Seamless |
|
Nipple |
Threaded ends |
Machined |
|
Parameter |
Butt-Weld Fittings (BW) |
Socket-Weld / Threaded Fittings (SW / NPT) |
|
Nominal Size (DN/NPS) |
1/2″ – 24″ |
1/8″ – 4″ |
|
Wall Thickness Schedule |
Sch10S, Sch40S, Sch80S |
3000LB, 6000LB |
|
Manufacturing Process |
Seamless (≤12″) / Fabricated (>12″) |
Forging + Machining |
Raw Material Selection: Premium Alloy 625 billet VIM/VAR from Special Metals or VDM.
Cutting & Heating: Precise cutting and induction heating.
Forming: Hot forging or extrusion.
Solution Annealing: 1095–1205°C + water quench.
Machining & Beveling: Precision machining.
Pickling & Passivation: Special blended acids for nickel alloys.
Marking & Inspection: Laser marking with full traceability.
|
Surface Finish |
Description |
|
Annealed & Pickled (AP) |
Standard industrial finish. |
|
Mechanically Polished |
Smooth finish (180#–400# grit). |
|
Electropolished |
Ultra-clean for high-purity applications. |
|
Passivated |
Enhanced passive layer. |
Chemical Analysis: PMI for Ni, Cr, Mo, Nb.
Mechanical Testing: Tensile, yield, elongation, hardness.
NDT: 100% Penetrant Testing; UT/RT optional.
Corrosion Testing: ASTM G28 intergranular; ASTM G48 pitting optional.
Third-Party Inspection: SGS, BV, DNV, TUV available.
Subsea Umbilicals: Chemical injection, hydraulic control lines fittings.
Seawater Systems: High-velocity seawater pump discharge connections.
Thermal Oxidizers: High-temperature ductwork fittings.
Aerospace: Hydraulic lines, fuel manifold fittings.
Chemical Processing: High-pressure hydrochloric acid injection.
Small bore: Cartons with moisture-proof film.
Large bore: Wooden crates with foam padding, individual wrapping.
End Protection: Plastic caps or thread protectors.
Ready stock for 1/2″–12″ Sch10S/Sch40S.
1. How
does Alloy 625 differ from Alloy 825?
625 has higher Mo (8-10% vs 2.5-3.5%), higher PRE, and higher strength. Used in
more severe seawater and high-temperature oxidizing service.
2. Can
Alloy 625 fittings be welded to stainless steel?
Yes, use ERNiCrMo-3 filler; proper overlay or buttering recommended.
3. Is 625
resistant to hydrochloric acid?
Good for dilute HCl; concentrated HCl requires Hastelloy C276.
Premium Mill Sources: Special Metals, VDM.
Deep Experience: Subsea umbilical fittings, aerospace.
Full Traceability: Heat number to finished fitting.
Fast Custom Production: Engineered-to-order available.
Tel / WhatsApp:
Victor: +86 15575100681
Jack: +86 18390957568
E-mail: info@womicstainless.com
Website: www.womicsteel.com
Contact Womic Steel today for a competitive quote on Alloy 625 stainless steel pipe fittings. We offer certified quality, fast production lead times, and reliable global delivery to keep your pipeline projects running smoothly.
Stock Examples:
90° LR Elbow: 4″ Sch40S, 2″ Sch80S
Equal Tee: 2″×2″ Sch80S, 4″×4″ Sch40S
Concentric Reducer: 8″×6″ Sch40S, 6″×4″ Sch80S
Cap: 6″ Sch40S
